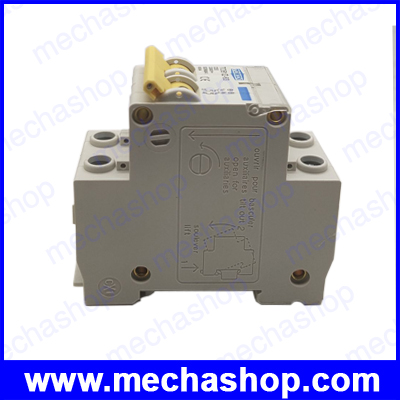

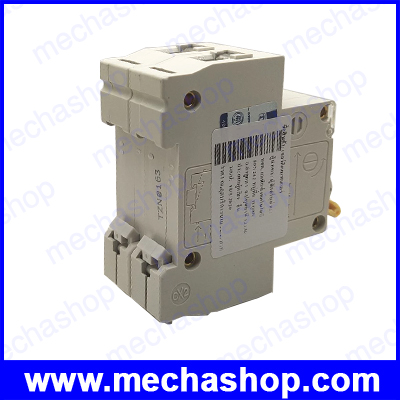

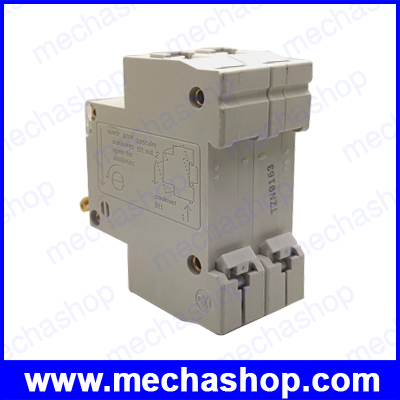

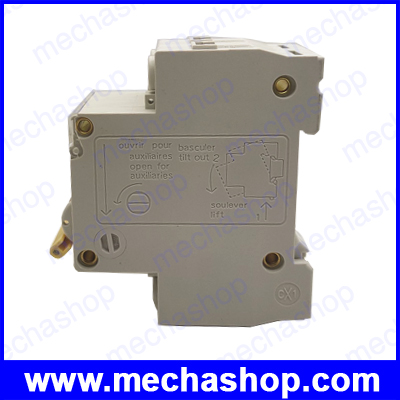

เบรกเกอร์ไฟฟ้ากระแสตรง 2P DC 600V 32A Circuit breaker MCB C curve direct-current fuse for PV
TOBIZ-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage 250V and 600V. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. Products according IEC60898-1, GB14048.2 standard.
Specification :
- Poles Number: 2
- Model Number: TOB1Z-63
- Rating current In(A): 32A
- Standard: IEC/EN60947-2
- Breaking current Icu(A): 6000
- Rated Voltage: DC 600V
- Time: 10ms
- Instantaneous trip type: C
Characteristic
TOBIZ-63 DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic trip contact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strong permanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000 times and beautiful shape. It can be connected with din rail named TH35-7.5 standard stainless type and has the below
personality: the handle is designed on the top of the front, people will feel safe and comfortable when operating. When connecting, pay attention to “+, -” poles; The power goes in from the top and comes out from the underside which is applied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 poles circuit breaker to connect front loop for two poles serial connection.

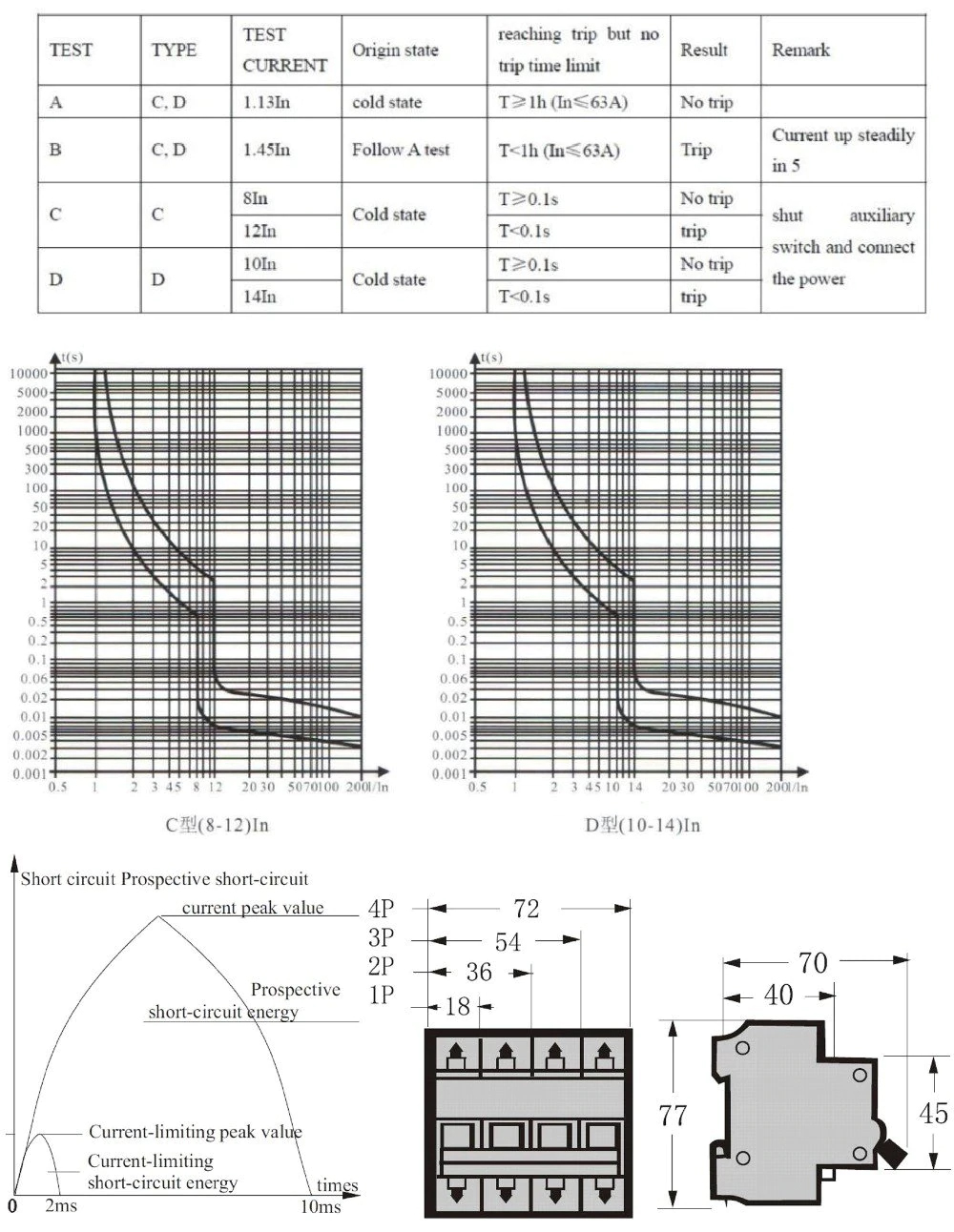

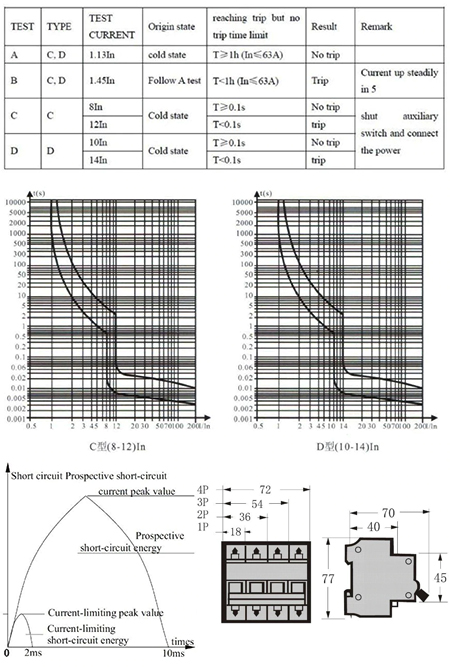

- B Curve (3-5In) protection for people and big length cables in TN and IT systems
- C Curve (5-10In) protection for resistive and inductive loads with low inrush current.
- D Curve (10-14In) protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps)
รับประกันสินค้า 6 เดือน
