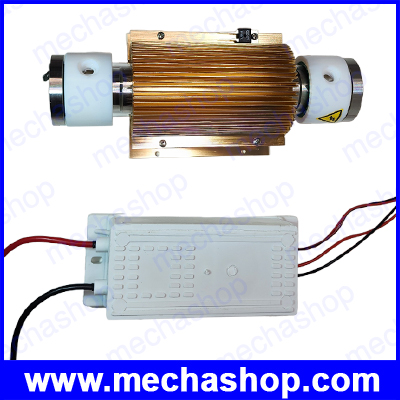

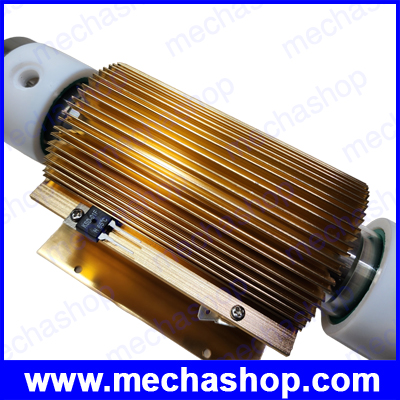

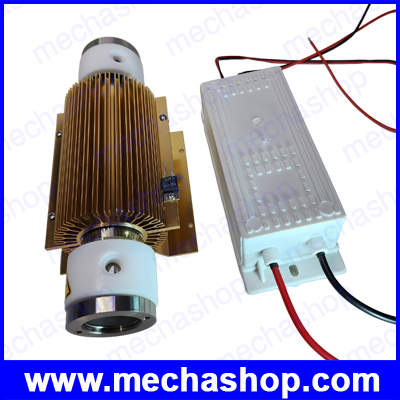

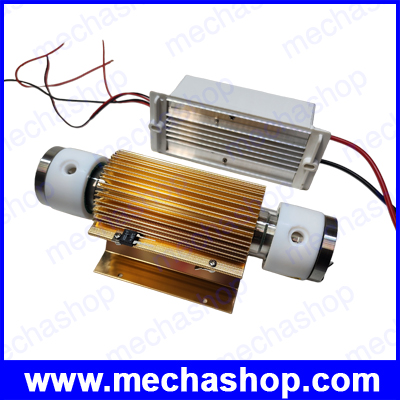

เครื่องผลิตโอโซน 10g/h AC 220V Quartz tube type ozone generator Kit room air water purifier

รายละเอียดสินค้า

เครื่องผลิตโอโซน 10g/h AC 220V Quartz tube type ozone generator Kit room air water purifier

> เช็คสต๊อคสินค้า <<

รายละเอียดสินค้า

• Input voltage:220V 50/60HZ

• Output voltage: 3KV

• Ozone output: 10g/hr

• If oxygen input: oxygen flow should be less than 2L/min

• If ambient air input: air flow should less than 30L/min

• Power consumption: 60W

• Over heat protection: when tube temperature>65 degree, the machine turns off automatically.

• Over current, short circuit, open circuit protection.

• Cooling style: air cooled. At least one 120*120*38mm fan to cool down both the power supply and the tube.

• Gas pressure: <100kpa (1bar/ 0.1Mpa)

• Gas temperature: < 30℃

• Surrounding humidity: < 70%

• Surrounding temperature: 5-20℃

Feature:

First of all, all the parts are visible, which is easy to find the problem if any. And high voltage corona discharge is visible, as well.

1. With safe distance 12mm between the edge of external electrode and the white PTFE terminal, it won’t accumulate moisture in between, easy to dry up, thus avoid burning effectively.
   On the other hand, this design makes the working condition transparent. We can observe the purple corona obviously.

2. Seal the internal electrode and the PTFE terminal by thread, no screw used. Thus, it makes the internal electrode far from the external electrode, avoid burning effectively.

3. The supporter edge is 6mm wider than the sealing edge, which makes the installation much easier than the traditional design.

4. The terminal sealing ring with thread is made of 304L stainless steel, the same as the internal electrode, which can prevent electrochemical reaction when the surrounding environment RH more than 60%.

5. The white terminal and gas nozzles are made of Pure PTFE, which is durable, anti-oxidization.

6. The Internal silica tube thickness is 1.5mm, greatly save power consumption, increase ozone output.

7. Narrow discharge gap. 0.5mm. (the gap between the external of the internal 304L electrode,and the internal of the silica tube)

รับประกันสินค้า 3 เดือน
