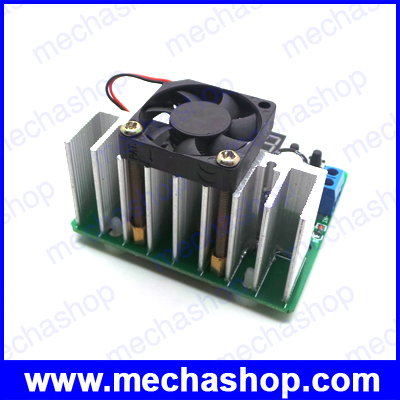

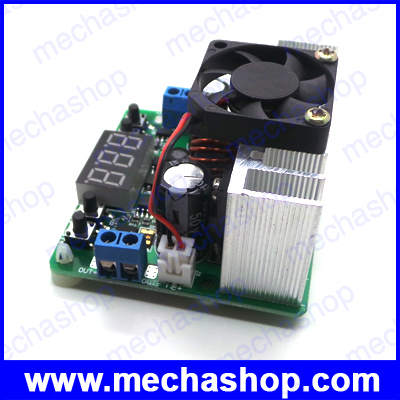

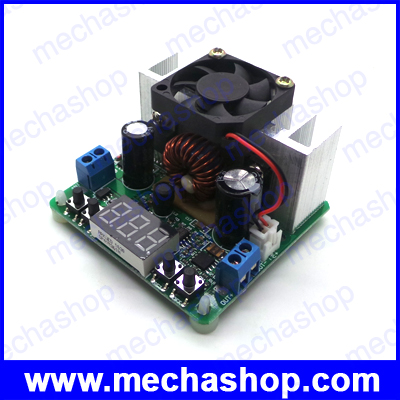

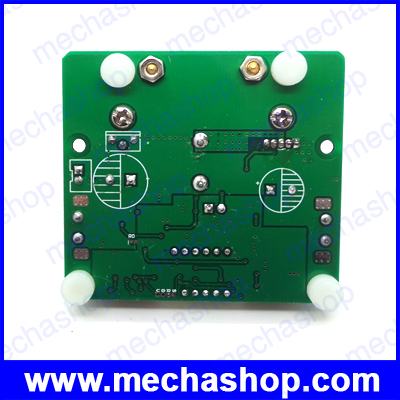

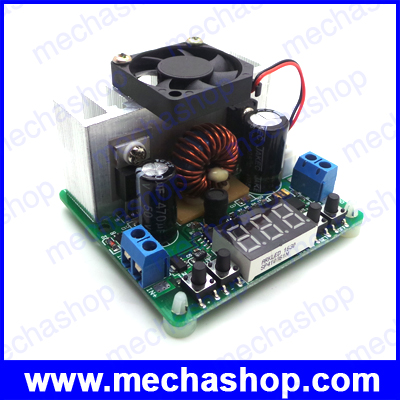

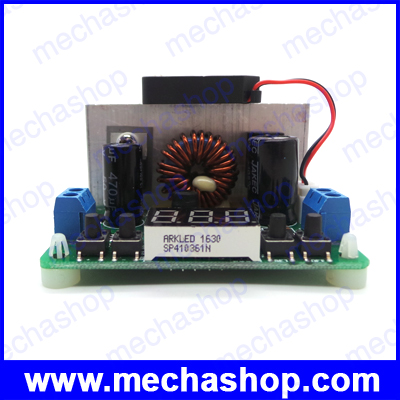

แหล่งจ่ายไฟปรับค่าได้ แหล่งจ่ายไฟโปรแกรมได้ RD DP4016 Constant Voltage Step-down Programmable Power Supply buck converter Digital voltage meter 0-38Vdc 8A

>> เช็คสต๊อคสินค้า <<

Technical Parameter:

• IN+: Input positive pole
• IN-: Input negative pole
• OUT+: Out positive pole
• OUT-: Out negative pole
• Input voltage range: 6-40V (The high limit voltage is 40V; in order to avoid to be burnt, please leave room to use)
• Output voltage range: 0-38.0V
• Output power: Max 200W
• Output current: 8A (with fan version)
• Output voltage set resolution: 0.1v
• Product weight: 80g (with fun version 90g)
• Product size: 60mm*66mm*45mm(with fan version)
• Protection function: Reverse connection protection (no short-circuit protection)

Operation instructions:

• Before connect the wire, please look the character beside input and output terminals carefully in advance to ensure proper wiring in strict accordance with the character;
• Before operate the button, please look the character beside PCB carefully in advance to ensure know the function of each button.

1. ON/OFF key is to control output voltage. When connect the power supply, the module show the default output voltage. Press the button one time, the output voltage function is closed, press it again, it can work, followed by recycling.
2. The two buttons on the tube left (IN key and OUT key) can switch the tube display between the current input voltage and the current output voltage.
3. SET key is to set output voltage. Press SET shortly, the decimal places of output voltage will be flashing. It shows this place enters into the set mode. You can press the two buttons (+ key and – key) on the tube left to increase or decrease the value. So you can set the output voltage increase or decrease.  After choosing the needed value on decimal place, you can press the set button again; the integer places of output voltage will be flashing. It shows this place enters into the set mode. You can use the same to control the two buttons get the value you need. After get the value you need, you can press the SET key to quit this set mode; if you don’t press the set key, the set mode will be automatically exited after 6s and the current set value will be automatically stored.

 รับประกันสินค้า 15 วัน
