เซนเซอร์วัดแรงสั่นสะเทือน ไวเบรชั่นเซนเซอร์ Smart Electronics Vibration Sensor Module Vibration Switch Alarm Module สำหรับ Arduino
>> เช็คสต๊อคสินค้า <<

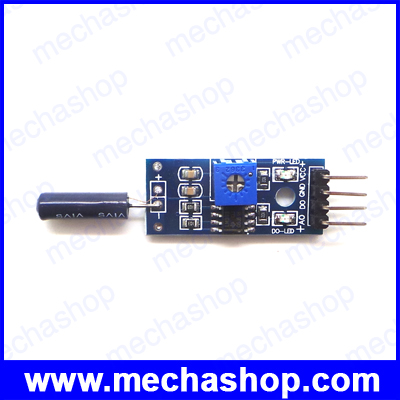

Vibration Sensor Module Vibration Switch Alarm Module
USES:
- Used to trigger the effect of various vibration, reported the theft alarm, intelligent car, electronic building blocks, etc.
- Please note that this module in the induction to the small vibration triggered when time is short, not enough to drive the relay, according to some people can be directly connected to the relay module, use the effect not beautiful.
Module USES:
- the product is not vibration, vibration switch is disconnected state, output, output level green light is not bright;
- product vibration, the vibration switch conduction, instant output output low level, the green light is lit;
- output can be attached directly to the single chip microcomputer, through single chip microcomputer to detect the high and low level, thus to detect if there is a vibration environment, report to the police
Description
- our company produces the high sensitivity of vibration switch, with SW – 18010 – p vibration sensor, by default.
- the comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma
- the working voltage of 3.3 V to 5 V
- output form: digital switch output (0 and 1)
- equipped with fixed bolt hole, convenient installation
- small board PCB size: 3.2 cm x 1.4 cm
- use the LM393 wide voltage comparator
Module connection details:
- The VCC: positive
- The GND: connect power negative
- DO: digital signal output
- AO: this feature with the vibration sensor is invalid
Package Included
- 1Pcs vibration sensor module
