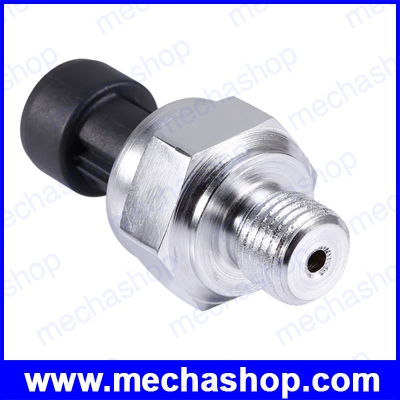

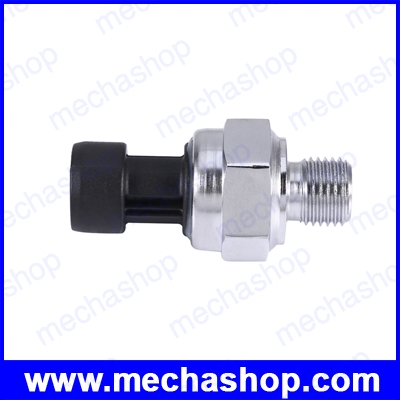

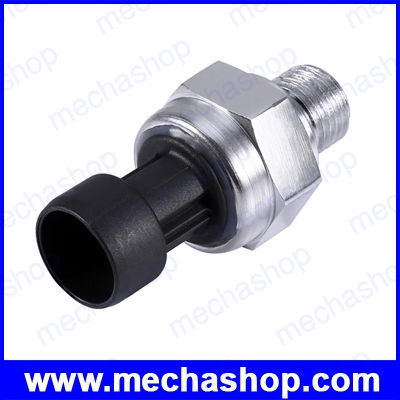

This series of pressure sensor housing for the 304 stainless steel structure, the use of high-precision diffusion of silicon pressure core as a sensor element, has a strong seismic, impact resistance and long-term stability, easy installation, wide range of features used in liquid or Gas pressure measurement. Colleagues and different thread interface and signal output to meet the needs of our customers.

The series of products are widely used in industrial equipment, constant pressure water supply, medical equipment, process control, etc.

Application areas:

• Construction machinery, molding machinery, testing machine, online pressure detection, aerospace, hydraulic and pneumatic equipment, constant pressure water supply, medical equipment and other fields.

 Charateristics

1. Precision, stability, good stability
2. High sensitivity, strong overload capacity
3. Wide range, easy installation, to meet the needs of different sites….

• Working voltage: DC 5V
• Output Voltage:  0.5-4.5V
• Working Current:  <=10    mA
• Working pressure range: 0-1.6MPa
• Response Time:      <=2.0   ms
• Measuring Error:      +_ 1.5  %FSO
• Temperature Range Error:    +_3.5  %FSO
• Operating temperature range:  0-85 D Cel
• Storage temperature range:  0-85 D Cel
• Sealing class: IP65
• Cycle life: 500,000 pcs







รับประกันสินค้า 1 เดือน
