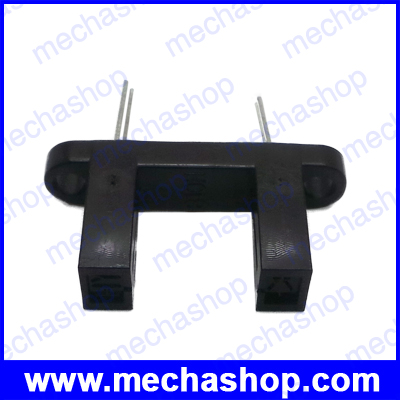

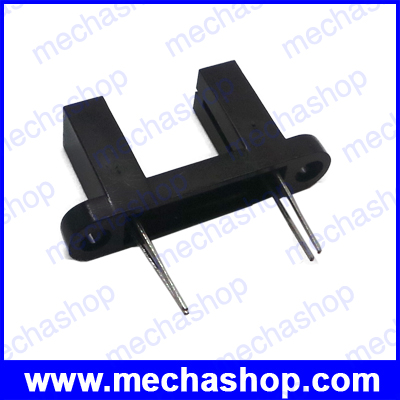

เซนเซอร์ก้ามปู Transmissive Optical Switch HY810H HY810 concave groove slot pitch 10mm photoelectric sensors
>> เช็คสต๊อคสินค้า <<
Product features
- Product Name: Slotted Optical Switch; Model: HY810H; Output Type: Photo Transistor
- Peak Emission Wavelength: 940nm; IR Diode Forward Current: 50mA; IR Diode Reverse Voltage: 5V
- Transistor Power Dissipation: 75mW; Transistor Collector Current: 20mA
- Photo Transistor Collector-emitter Voltage: 30V; Photo Transistor Emitter-collector Voltage: 5V
- Net Weight: 9g;
- Package Content: 1 x Slotted Optical Switch w Bracket
Product description
- SODIAL(R) 25/64″ Slot PCB Photo Interrupter Sensor HY810H 1Pcs
- Features a built-in bracket for easy mounting.
- Consisted of an infrared emitter and a phototransistor, is located face-to-face on the optical axes in a leaded package.
- During operation, output phototransistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.
- Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
- Diode Power Dissipation: 100mW
- Operating Temperature Range: -55~100 Celsius Degree
- Number of Pins: 4
- Slot Width: 10mm/25/64″
- Slot Depth: 10mm/25/64″
- Pin Length: 9mm/0.35″
- Pitch: 14mm/0.55″, 2.5mm/0.1″
- Hole Dia.: 3mm/0.12″
- Total Size: 27 x 24 x 6mm/1.1″ x 1″ x 0.2″(L*W*H)
- Material: Plastic, Metal
- Color: Black
