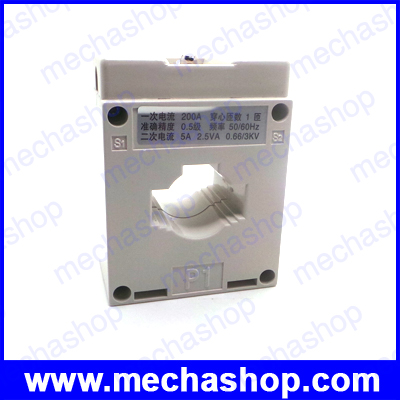

Current transformer CT BH-0.66 ขนาด 200A LMK BH bore diameter 30 วัดกระแสไฟฟ้า 200A
>> เช็คสต๊อคสินค้า <<
Description:
- AC Circuit, 200/5 Rated Current Ratio.
- The middle of the window for the bus to wear around.
- Protects equipment against circuit damage.
- Tests, controls, displays and records electrical equipment operation.
- Note: when S1,S2 opened, it will have high voltage. it is so dangerous that please note it.
Specification:
- Item Name: Current Transformer
- Model: LMK-BH-0.66
- Rated Current Ratio: 200/5
- Rated Voltage: 0.66KV
- Accuracy Class: 0.5
- Working Frenquency: 50Hz – 60Hz
- Conductor Through: 1T
- Primary Current: 200A
- Secondary Current: 5A 50/60Hz 660V
- Total Size: 7.8 x 6 x 3.8cm/3.1″ x 2.4″ x 1.5″(L * W * T)
- Case Material: Plastic
- Color: : Gray
Package Content
- 1 x Current Transformer
- Several Mounting Accessories
