เครื่องวิเคราะห์แบตเตอรี่ เครื่องตรวจสภาพแบตเตอรี่ เครื่องวัดแบตเตอรี่ Battery Tester BA101 Car Battery Tester 12V Automotive Vehicle BA101 Battery Analyzer 100-2000CCA สูงสุด 220Ah
BA101 Automotive 12V Vehicle Battery Tester Advantage:
1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English, French, Spainsh, German, Italian, Polish,Japanese, Korean and Chinese

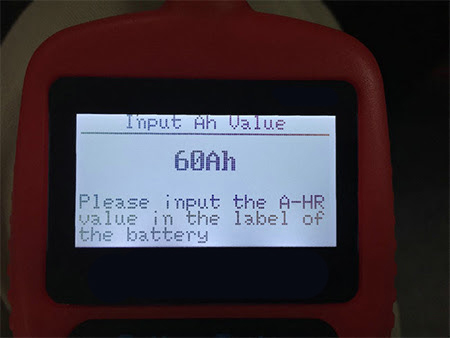

9. Quick test—input battery volume (AH), then it can show the battery status.
10. vehicle cranking system test— cranking time, voltage and status.
11. vehicle charging system test—load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function
BA101 Automotive 12V Vehicle Battery Tester Benefit:
1. Conductance correlates directly to the battery capacity
2. Passive testing method is safe.
3. Never discharges or drain the battery.
4. Able to test condition of discharged battery.
5. Consistent and repeatable results.
6. Provides unique indication of battery conditions.
7. Provides check the Alternator's charging and Starter's cranking conditions. It is maintenance free and no internal batteries required.
8. Powers up when connected to the battery posts during testing.
QUICKLYNKS BA101 Automotive 12V Vehicle Battery Tester Function:
Test Result: Good or Replace

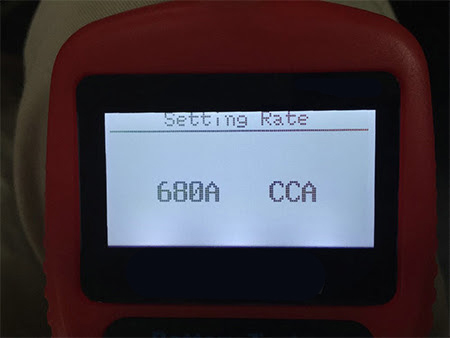

Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m )
Life in percentage (%)
Cranking system
Charging system
Application:
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
Operating Parameters:
System voltage:12 Volts
Input voltage range: 9V~15V
Power requirements:No internal batteries required. Power on when hooked up during testing.

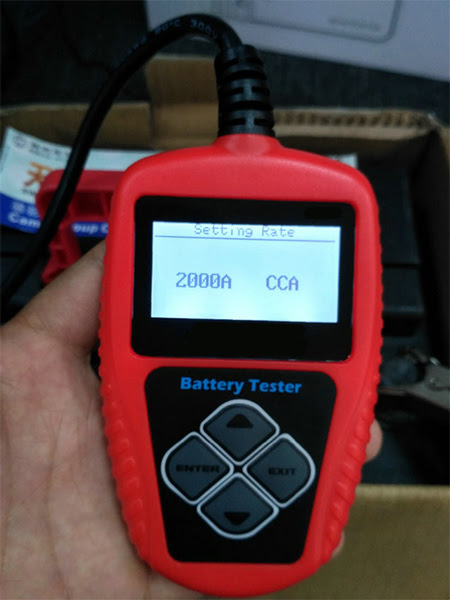

Testing range: 100 ~ 2000 CCA, 100 ~ 1000 DIN, 100 ~ 1000 IEC, 100 ~ 1700 EN

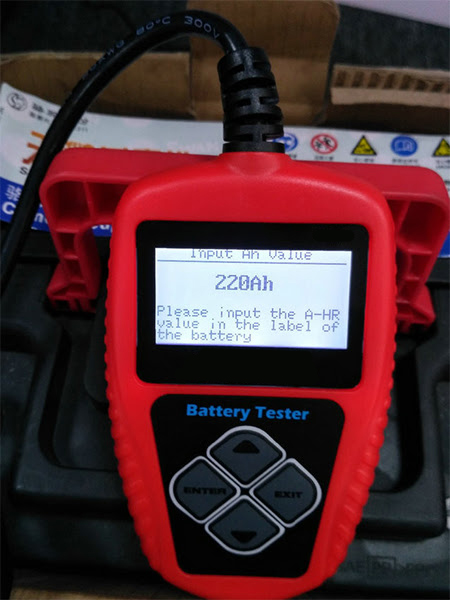

AH range:30-220AH
BA101 Automotive 12V Vehicle Battery Tester Testing Results:
The difference between BA100(Item No AD64) and BA101(Item No AD85 ):
Increasing function For BA101
1. BA101 increases cranking system test and charging system test.
2. BA101 increases EFB battery
3. BA101 increases quick test function
4. BA101 increases auto-storage functionBA101

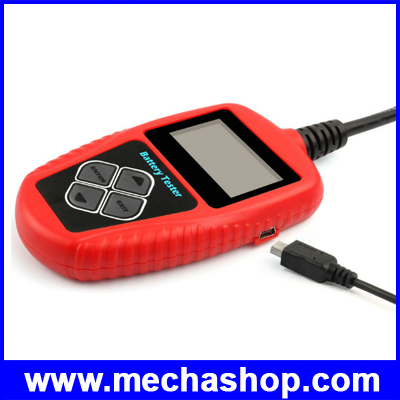

5. BA101 increases Print function via computer.
II, The advantage for BA101

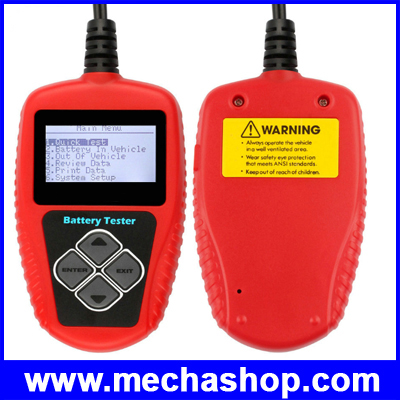

1. Four button for operation, more convenient for client.

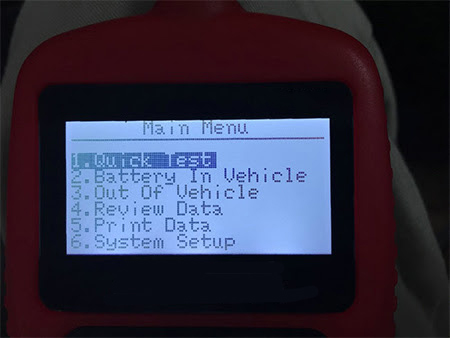

2. Bigger display, more information. as below picture
3.BA101 can shows the testing result in one screen, but BA100 only show one or two items in one screen.
Package including:

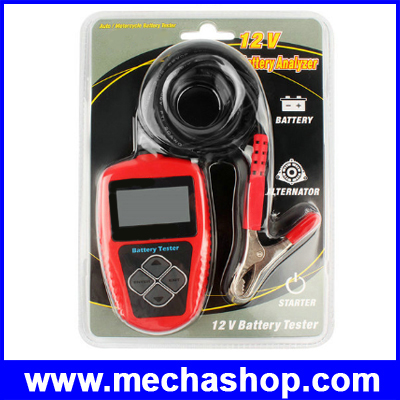

1pc x BA101 Automotive 12V Vehicle Battery Tester
BA101 has two version:
- European Version including English, Spanish, French, German, Italian and Polish,
- Asian Version including English ,Japanese, Korean and Chinese.
FAQ:
Q1: How to choose a better car battery tester?
A1: It is accuracy. Compared to other tester, the test results of Battery tester are the same(tolerance ±15) when testing at the same time. More Accurate!!
Q2: How to know my car's battery type?
A2: You can open your car and to check on the battery. There is Battery Type and value.
Q3: What is BA101 CCA value and AH?
A3: CCA100-2000, 30-220Ah, which is the highest CCA in the market. BA101 is informative display and functionality higher than others
Q4: What language it has?
A4: BA101 has two version, European Version including English, Spanish, French, German, Italian and Polish , Asian Version including English Japanese, Korean and Chinese.
