รายละเอียดสินค้า

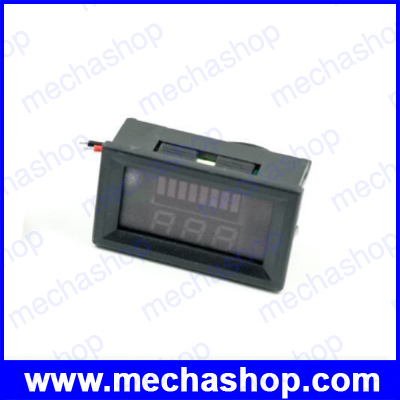

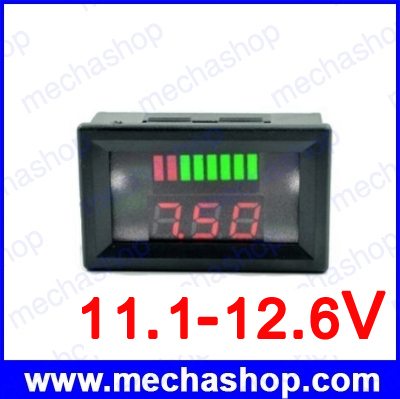

หน้าจอแสดงความจุแบตเตอรี่ มิเตอร์วัดแรงดันแบตเตอรี่ลิเธียม 11.1-12.6V 3s Lithium Battery Capacity voltage Tester Indicator Detector
>> เช็คสต๊อคสินค้า <<
Description:
- Work current:< 5-15mA (with backlight) the battery voltage lower, the current lower
- 8 grid electric quantity dispay : 10% 25% 40% 50% 60% 75% 90% 100%
- Voltmeter accuracy :1%
- Using temperature range: -10- 65
- Operating humidity:10-80%
- Black wire connect negative electrode
- Red wire connect positive

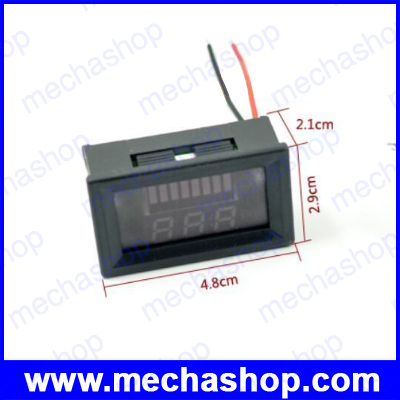

- External dimension:48×29×21 mm
- With a shell, easy to use stand-alone or embedded in the panel on the product.
- Using range :18650 batter ,Polymer lithium-ion battery pack ,Lead-acid battery,electrocar battery , Nimh batteries
Indicator:
The 12 v lead-acid voltage range:(also can use for 4 series of lithium iron phosphate batteries)
battery voltage is greater than 11.1 V, bright 1 grid
battery voltage is greater than 11.3 V, bright 2 grid
battery voltage is greater than 11.6 V, bright 3 grid
battery voltage is greater than 11.9 V, bright 4 grid
battery voltage is greater than 12.2 V, bright 5 grid
battery voltage is greater than 12.5 V, bright 6 grid
battery voltage is greater than 12.9 V, bright 7 grid
battery voltage is greater than 13.3 V, bright 8 grid
รับประกันสินค้า 7 วัน
