รายละเอียดสินค้า

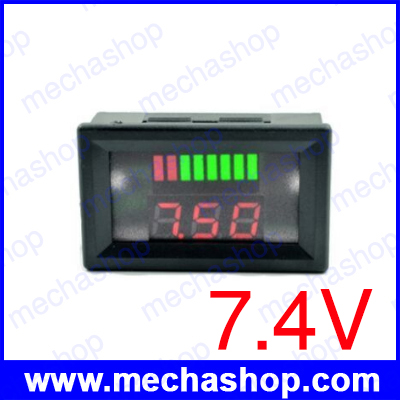

มิเตอร์วัดแรงดันแบตเตอรี่ หน้าจอแสดงความจุแบตเตอรี่ลิเธียม 7.4V Lithium Battery Capacity voltage Tester Indicator Detector
>> เช็คสต๊อคสินค้า <<
Description:
- Work current:< 5-15mA (with backlight) the battery voltage lower, the current lower
- 8 grid electric quantity dispay : 10% 25% 40% 50% 60% 75% 90% 100%
- Voltmeter accuracy :1%
- Using temperature range: -10- 65
- Operating humidity:10-80%
- Black wire connect negative electrode
- Red wire connect positive
- External dimension:48×29×21 mm
- With a shell, easy to use stand-alone or embedded in the panel on the product.
- Using range :18650 batter ,Polymer lithium-ion battery pack ,Lead-acid battery,electrocar battery , Nimh batteries
Indicator:
Lithium battery display Data is a reference value, there will be 2% error range
battery voltage greater than N×3.2V Bright 1 grid electricity(N stand for the battery Serial number )
battery voltage greater than N×3.3V Bright 2 grid electricity
battery voltage greater than N×3.4V Bright 3 grid electricity
battery voltage greater than N×3.5V Bright 4 grid electricity
battery voltage greater than N×3.6V Bright 5 grid electricity
battery voltage greater than N×3.7V Bright 6 grid electricity
battery voltage greater than N×3.8V Bright 7 grid electricity
battery voltage greater than N×3.9V Bright 8 grid electricity
รับประกันสินค้า 7 วัน
