เครื่องวัดการไหลดิจิตอล มิเตอร์วัดการไหล Ultrasonic Flow Meter TUF-2000M-TS-2 DN15-100mm

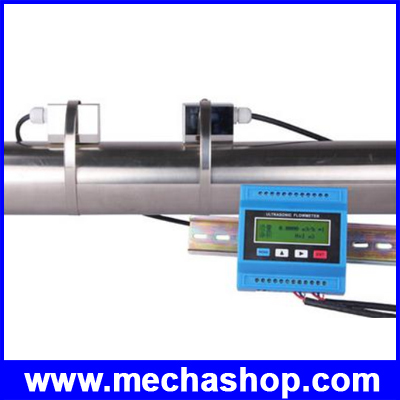

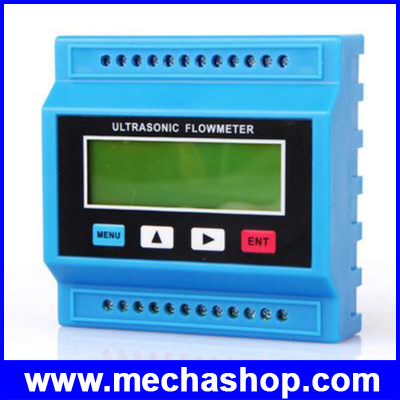

TUF-2000M TS-2Digital Ultrasonic Flowmeter Flow Meter Ultrasinic Flow Module/RTU with TS2 transducer (DN15-100mm) -30 ~ +90C
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than +-1%
Wide measuring range
Several types transducer for selection, pipe size from DN15mm to DN6000mm
Far transmission distance
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
Powerful Functions
- Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
- OCT output: two channels, can be used for flow /heat switch;
- Current input: 4-20mA, three channels, can be used for data collector;
- Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.
Wide Application
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.
Structure of Unified Calorimeter:

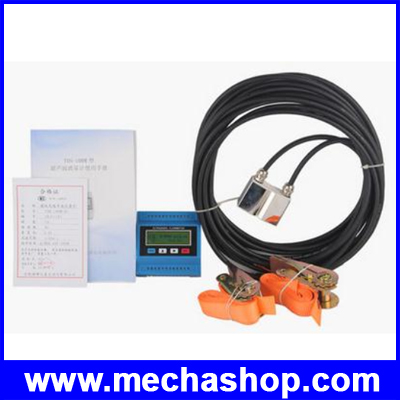

Standard Packing List:
- Transmitterx1 set
- TM-1 type transducerx1 pair
- Clamp Fixturex1 set
- 5m×2 Transducer Cablex1 pair
- English User Manualx1 piece
รับประกันสินค้า 6 เดือน
