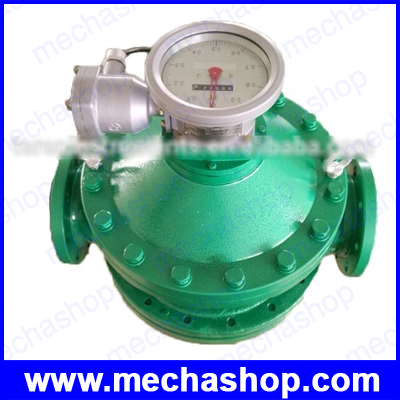

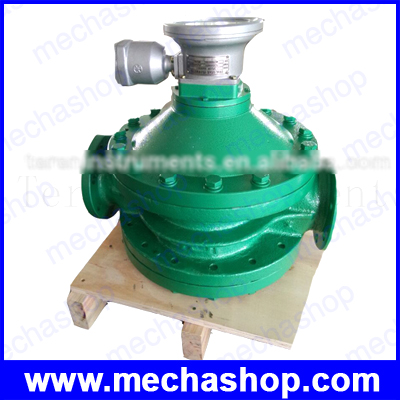

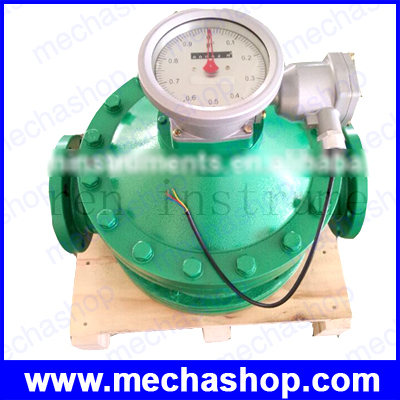

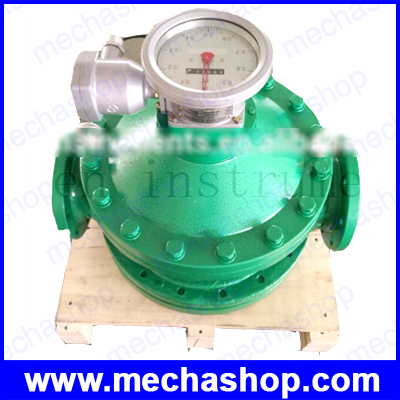

เครื่องวัดอัตราการไหลอัลตราโซนิค Teren-OVF Teren High Viscosity Diesel Fuel Flow meter oval gear Flow Meter (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
The oval gear flow meter is a kind of volumetric measuring instrument and is mainly composed of meter shell, oval gear rotor and transmission parts. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of lager metering range, excellent accuracy, small pressure loss, high viscosity adaptability, capability of measuring high-temperature and high-viscosity liquids, convenient demarcation and simple installation etc.. It is applicable to the calibration and metering of crude oil, chemical, chemical fiber, traffic, commerce, food, medicine and health, scientific research and military etc.
Specifications:
- Model: Teren-OVF
- Body Material: Cast iron；Cast Steel；Stainless Steel
- Signal Output Optional: Pulse or 4-20mA
- Power supply: 24V DC
- Accuracy: Standard: 0.5%; Optional: 0.2%
- Explosion proof: ExiaIICT6；ExiaIICT6
- Protection Rating: IP65；IP65
- Diameter: DN15~DN200；DN10~DN200
- Installation Method: Flange
- Fluid Temperature: -20℃~200℃；-20℃~100℃
- Ambient Temperature：-20℃~60℃；-20℃~60℃
Model and Function
- LC11-type: Displays flow on site;
- LC12-type: Displays accumulated flow, output pulse voltage signal and 4-20mA current signal on site;
- LC13-type: Solely outputs standard signals for users to collect and receive. The provided signals are:pulse voltage signal and 4-20mA current signal.
Purpose of Product
- The LC-A type cast iron oval gear flow meter is widely used in the metering of various oil products and liquids having no corrosion to the cast iron material.
- The LC-E type cast steel oval gear flow meter is used in the metering of high-pressure low-corrosion liquid media.
- The LC-Q type cast iron oval gear flow meter is widely used in the metering of low-viscositylow-corrosion (such as gasoline) liquid media and its rotor is made of Aluminium Alloy.
The LC-B and C types stainless steel oval gear flow meter are widely used in the metering of liquid media with high corrosion, such as acid, alkali, salt and organic compound etc.
รับประกันสินค้า 6 เดือน
