รายละเอียดสินค้า
เครื่องวัดอัตราการไหลอัลตราโซนิค Teren-DTI-100F Ultrasonic Flow Meter Wall-mount flow meter Transducer Modular Flowmeter (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<

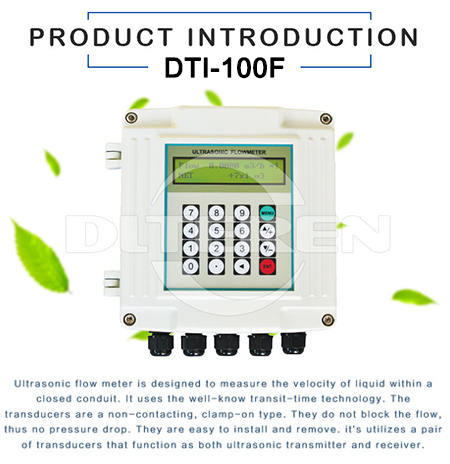

The DTI-100F modular ultrasonic flow meter can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels, The design of the meter is intended to provide for users like system integrators and OEM users with a lowest cost but of high performance flow meter
Specifications:
- Model: Teren-DTI-100F
- Liquid TypesVirtually all commonly used liquids(full pipe)
- Repeatability: Better than 0.2%
- Accuracy: Better than ±1%
- Flow Velocity: 0~ ±32m/s
- Liquid Temp: 32F~320F (0℃~160℃)

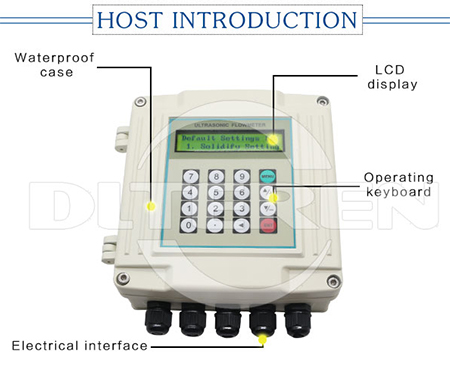

- Display: 2*20 backlit LCD
- operating: 4*4 tactile keypad
- Measuring Period: 500m/s ( twice /s)
- signal output: RS485 output; 4-20mA or 0-20mA active output;
- OCT output; RS-232, RS-485(optional)

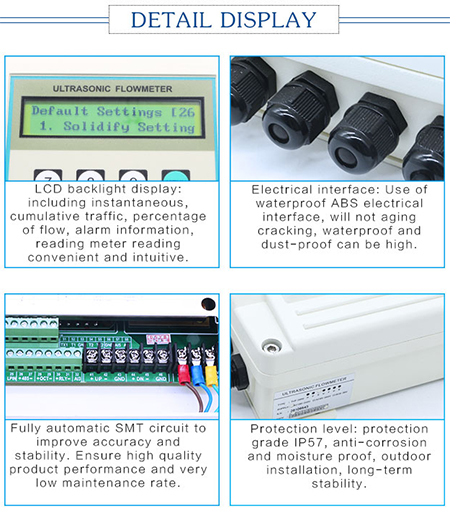

- protection level: mainframe:IP65, transducer:IP:68
- Pipe Material:All metals, most plastics, fiber glass, etc. Allow pipe liner
- Power: AC 85—264V or DC 8VDC-36VDC
รับประกันสินค้า 6 เดือน
