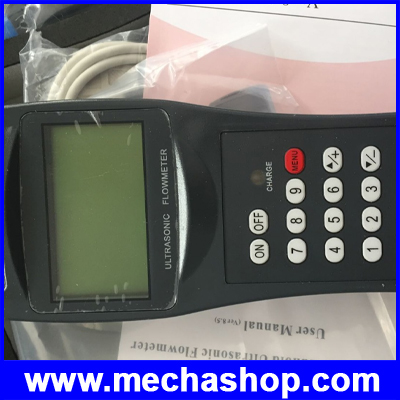

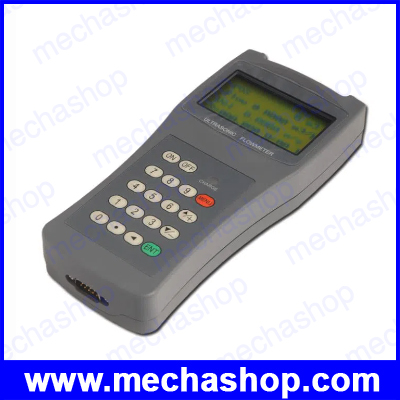

มิเตอร์วัดอัตราการไหล เครื่องวัดอัตราการไหลอัลตร้าโซนิก TDS-100H-M2 Handheld Ultrasonic Flow meter 50-700mm (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
Specification
- Ultrasonic Flow Meter/ultrasonic flowmeter/flowmeter
- Hand Hold Ultrasonic Flow Meter
- Nonwetted measurement, small in size.
Main technical indices
|
Linearity
|
0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates>0.6 ft/s. ±0.5% with onsite calibration |
| Response Time | 0999 seconds, userconfigurable |
| Velocity | ±0.03 ±105 ft/s (±0.01 ±30 m/s), bidirectional |
| Pipe Size | 15mm 6,000mm |
| Rate Units | Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable. |
| Totaliser | 7digit totals for net, positive and negative flow |
| Liquid Types | Virtually all liquids |
| Security | Setup lockout. Access code needed for unlocking |
| Display | 4×16 English letters |
| Communication Interface | RS232C, baudrate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry. |
| Transducers | Model M1 for standard, other 3 models for optional |
| Transducer Cable | Standard 10m, optional 2×1,500 (500m) |
| Power Supply | 3 AAA NiH builtin batteries. When fully charged it will last over 10 hours of operation.100V240VAC for the charger |
| Data Logger | Builtin data logger can store over 2,000 lines of data |
| Manual Totalizer | 7digit presskeytogo totalizer for calibration |
| Housing Material | ABS. Aluminum alloy protective case |
| Case Size | 3.9×2.6×0.8 (100mmx66mmx20mm) |
| Handset Weight | 1.2 lbs (514g) with batteries |
Non-contact ultrasonic measurement of the magnetic flowmeter in the pipeline wall adsorption, complete flow measurement measurement range
Use different types of sensors can be realized diameter DN20 ~ DN1500 pipeline flow measurement, if you need a larger diameter measurement, please use the series of large-diameter ultrasonic flow meter
Built-in data logger: data logger, the space for the 24k bytes, 2000 lines can be stored measurement data.
Three sensors,M1 :50-700 ,S1 :15-100 ,L1:300-6000mm

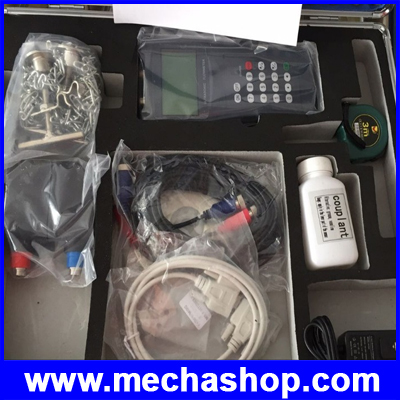

Package:
- 1 x TDS-100H main machine

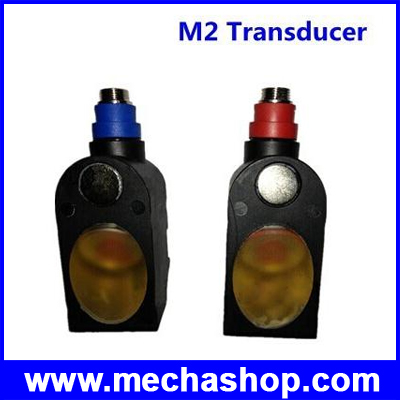

- 1 x M2 Transducer Sensor
- 1 x Clamp Fixtrue
- 1 x Tape Ruler
- 1 x Cable Data
- 2 x Cable machine
- 1 x AC Adapter
- 1 x User Manual
- 1 x Coupling Agent (only one empty bottle)
Standard configuration M2 sensors !
รับประกันสินค้า 6 เดือน
