เครื่องวัดเฉดสี เครื่องตรวจวัดสี เครื่องวัดค่าสี Spectrophotometer DS-700D High-Precision Colorimeter Color Difference Tester

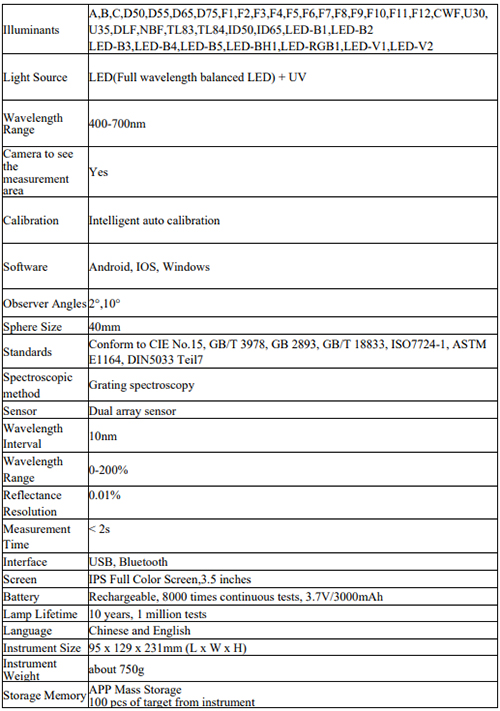

Technical Parameter
Product Advantage
1). Excellent repeatability and inter-instrument agreement
repeatability : dE*ab≤ 0.04 (max.) and inter-instrument agreement : ≤0.25
Test result is accurate and reliable to ensure the consistency of the measurement data of multiple devices, which can be used for color matching and accurate color communication.
2). It can pass metrology of level I.
The superior level of technology and craftsmanship ensures that the DS600 series has excellent inter-instrument agreement. The use of BCRA series standard colour bricks for colour transfer and colour value traceability guarantees an excellent level of inter-stage variation.

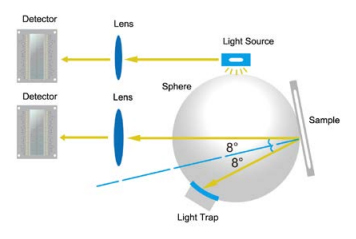

3). Dual optical path array sensor
The dual optical path design monitors the energy fluctuation of the light source while measuring the sample signal, reduces interference during the measurement, and obtains better measurement
repeatability. The usage of large-area dual-array sensors provides higher spectral response sensitivity, and ensures fast measurement speed, accuracy, stability and consistency between multiple devices.

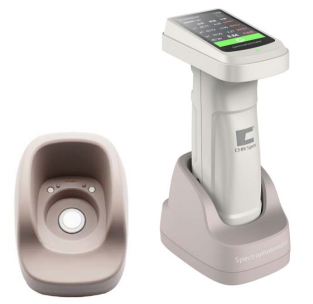

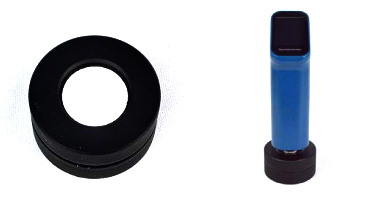

4). Intelligent auto calibration, white tile is made by ZrO2 with reflectance more than 90%, no need for frequent white calibration.
The instrument is placed on the intelligent calibration base, and the instrument can be automatically calibrated without manual intervention through the white tile on the base. It has changed the current situation that traditional instruments must be manually calibrated with white tile. The white tile is made by ZrO2 with reflectance more than 90%, which ensures excellent mechanical strength and weather resistance, and will not be scratched or discolored after long-term use
5). 400-700nm Full Wavelength Balanced LED+UV
The instrument adopts a full wavelength balanced LED and UV as the illuminant, ensuring sufficient spectral distribution in the visible and ultraviolet bands, and materials with fluorescent can also be measured
6). 10nm Resolution Grating Spectroscopy Technology
The grating combined with the array sensor made by the innovative MEMS process makes color measurement more accurate based on the 10nm spectral resolution.

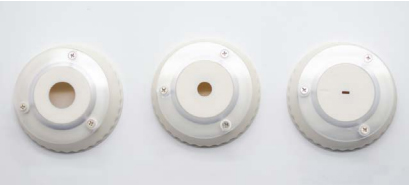

7). Three aperture as standard accessories, no tools are needed and apertures can be replaced at any time to meet different sample measurement requirements
Spectrophotometer DS700D comes with three apertures 11mm/6mm/1*3mm.
8). More than 30 kinds of color indices and 37 kinds of illuminants
DS-700D provides a variety of color indices and evaluation illuminants that comply with international standards. A variety of light sources and color indices can be flexibly chosen through the mobile phone app or PC software.

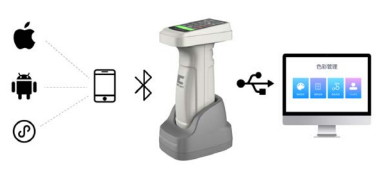

9). It supports Android, IOS and Windows program.

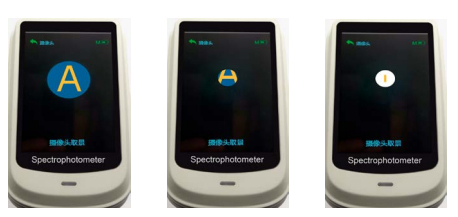

10). It is with the camera to see the measurement area clearly.
Application

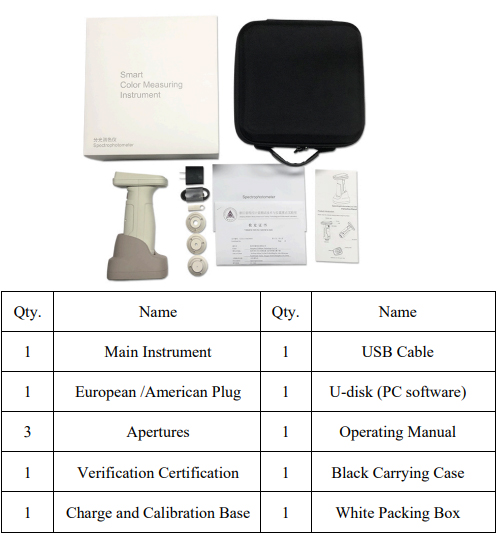

Packing List
Optional Accessories for DS-700d Spectrophotometer

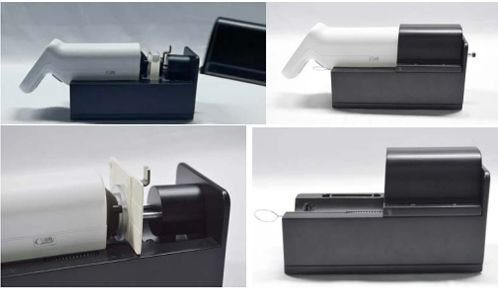

1). Liquid fixture : for liquid and sheet sample measurement
2). Powder holder: for powder and particle sample measurement
