รายละเอียดสินค้า

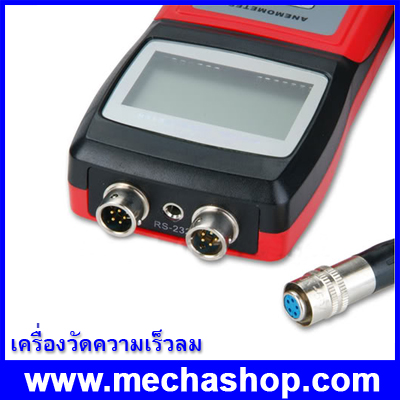

เครื่องวัดลม วัดความเร็วลม ใบพัดแยก เก็บข้อมูล บันทึกข้อมูลได้ AM4836C Cup Anemometer Air Flow Meter Wind Direction ยี่ห้อ NICETYMETER รุ่น AM-4836C
>> เช็คสต๊อคสินค้า <<
This professional anemometer (AM-4836C) works with a 3-cup velocity probe and directional probe for
collecting various data with high accuracy. The useful device can determine and memorize 24 groups
of following data: air velocity, air flow, Beaufort Scale, Wind Direction, Wave Height and Air
Temperature.
Wide applications for professionals covering:
- a. Data collection for boiler
- b. Refrigeration industry
- c. Ventilation duct
- d. Navigation measurement
- e. Weather forecast
- f. Collection of weather datum for outdoor busywork and fire department
General Specifications
ข้อมูลทางเทคนิค เครื่องวัดความเร็วลม
- LCD display : 4 digits, 0.5″ (13mm) LCD
- Measurement units
– a. Air Velocity: m/s, km/h, ft/min, knots
– b. Air Flow: CMM (m3 / min) ; CFM (ft3 / min)
– c. Beaufort Scale: Force
– d. Wave Height: m
– e. Direction : ° from the North direction
– f. Temp: °C and °F
- Data hold : Maximum value
- Can memorize 24 groups of obtained data and be able to recall from the meter at anytime.
- Sampling rate: reading per second approx.
- Direction probe : Low friction probe
- Temperature sensor : Precision thermistor
- Automatic power off : 0 – 9 minutes set by users
- Operating Temperature : 0 °C to 50 °C (32 °F to 122 °F)
- Operating Humidity: Max. 80% RH
- Power Supply : 4 x 1.5 AAA size Batteries (included)
- Item weight : 260g (after inserting batteries and including probe)
- Dimensions of main unit : 156 x 67 x 28 mm (6.14' x 2.64 x 1.1' inch)
- Dimensions of Velocity sensor : 65 x 65 x 115 mm (2.56 x 2.56 x 4.53' inch)
- Dimensions of Direction sensor : 86 x 69 x 115 mm (3.39 x 2.72 x 4.53' inch)
Range Specifications
Range Resolution Accuracy
Air Velocity
m/s (meters / sec) 0.4 – 45.0 m/s 0.1 m/s ±(2% + 0.1m/s)
km/h (kilometers / hour) 1.4 – 162.0 km/hr 0.1km/hr ±(2% + 0.1km/hr)
ft/min (feet per min) 80 – 8860 ft/min 0.1ft/min ±(2% + 1ft/min)
knots (nautical MPH) 0.8 – 88.0 knots 0.1 knots ±(2% + 0.1knots)
Air Flow
CMM (cubic meters/min) 0 – 9999 m3/min 0.001 to 1 ±(2% + 1 m3/min)
CFM (cubic ft/min) 0 – 9999 ft3/min 0.001 to 1 ±(2% + 1 ft3/min)
Beaufort Scale 0 – 12 0.1 ±0.5
Direction 0 – 360° 22.5° ± 22.5°
Wave Height 0 – 14 0.1 ± 0.1
Air Temperature 32°F – 140°F 0.1°F 0.9°F
0°C – 60°C 0.1°C 0.5°C
สินค้าประกอบด้วย:

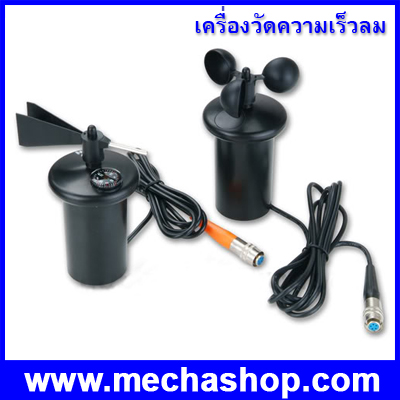

- 1pc x 3-cup Thermo-Anemometer (main unit)
- 1pc x 3-cup Velocity Probe
- 1pc x Direction Probe
- 4pcs x AAA 1.5V batteries
- 1 x instruction booklet
- Standard factory package
รับประกันสินค้า 6 เดือน
