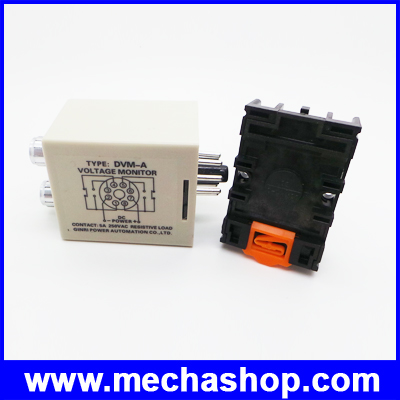

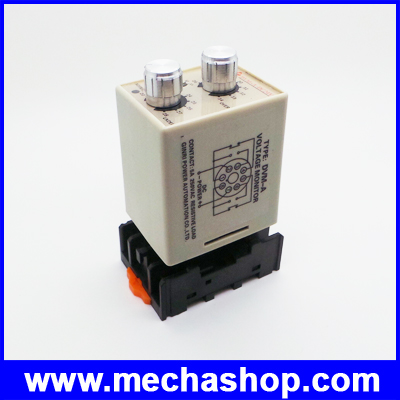

• Electronic DC Under and Over Voltage Protective Relay
• Dimensions(mm):50H×40W×57.5D

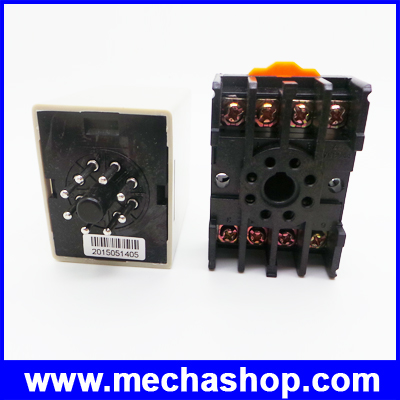

• Mounting (Optional):PF085A&SH-3
• Rated Voltage: DC24V
• Over voltage setting range: 20-28V
• Under voltage setting range: 26-34V

Features:

• Under voltage protection
• Over voltage protection

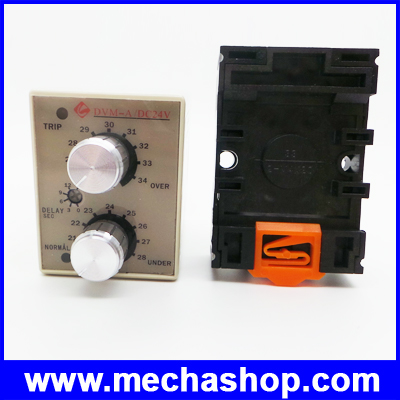

• Adjustable setting with potentiometer

• On dealy time:1.0~10.0s adjustable
• Operation Indicators:Trip-normal two indicator lamp
• Output Contact:  3A  250VAC , DC30  2A
• Power Consumption:≤2VA
• Weigh:110g
• Ambient Temperature:-10~+55°C
• Ambien Humidity:45%~85%RH
