เครื่องพิมพ์3มิติ SLM 280 HL: Cost efficient for production with unique options for fast results
Cost efficient for production with unique options for fast results
INCREASE BUILD SPEED
- 30% faster than the competition with twin-laser technology
- Patented bi-directional loader
- Built-in 400W Fiber Laser technology
- MULTI-LASER SOLUTIONS — Option to add 1 additional 400W or 1000W Fiber Laser
LOWER OPERATIONAL COST
- Closed-loop powder handling
- Open software architecture & system parameters
- Upgraded process control
- Optimized laminated gas flow and recirculation
Ideal for medium to high volume metal part production and prototypes, the next generation Selective Laser Melting System SLM® 280HL provides a 280 x 280 x 350 mm build envelope with an improved laser beam profile. Likewise, the newly integrated SLM Build Processor and open software architecture offers the freedom of controlling system parameters to optimize and meet strict production needs.

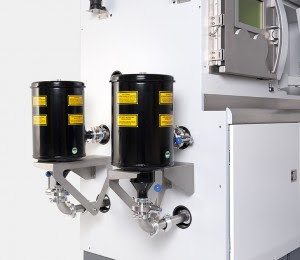

The complete process is performed in a closed-loop powder handling and inert gas atmosphere. The patented internal recirculation of gas at laminar flow also ensures efficient and safe consumption. A high-efficiency filter system enables a complete filter change under safe and stable conditions. The filter housing unit is also reusable and can be set-up with recyclable filter cartridges that help to reduce your overall operational costs.
Achieve greater component quality for complex, delicate, yet fast part builds. Individual developments on the SLM 280 HL can be transferred for the production of other machines in SLM series, such as the SLM®500HL.
SYSTEM PARAMETERS*
| Build Envelope Volume in mm (x/y/z) | 280 x 280 x 350 |
| Laser Power | 400/1000W or 2x 400W Yb-Fiber Laser |
| Build Speed | 20 – 45 ccm/h |
| Pract. Layer Thickness | 20 – 75 / 100 μm |
| Min. Scale Line / Wall Thickness | 150 / 1000 μm |
| Operational Beam Focus | 80 – 120 / 700 μm |
| Scan Speed | 15 m/s |
| Inert Gas Consumption in Operation | Ar/N, 2.5 – 3.0 L/min |
| Inert Gas Consumption Venting | Ar/N, 1700 L @ 100 L/min |
| Compressed Air Requirement | ISO 8573-1, 18 L/min @ 1.5 bar |
| Dimensions in mm (B x H x T) | 1800 x 1900 (2400) x 1020 |
| Weight | approx. 1000 kg |
| E-Connection / Consumption | 400 Volt 3NPE, 32 A, 50/60 Hz, 8 KW |
*Subject to technical changes
