หมายเหตุ: การสั่งซื้อสินค้าสามารถเลือกความยาวของแกน X,Y และ Z  ที่สามารถอ่านค่าได้  ตั้งแต่ 100-1000mm ช่วงค่าความยาวเพิ่มขึ้นที่ละ 50mm

• Voltage Range: AC 80V~264V/50HZ~60HZ
• Acceptable Signal: TTL square wave/ EIA-442

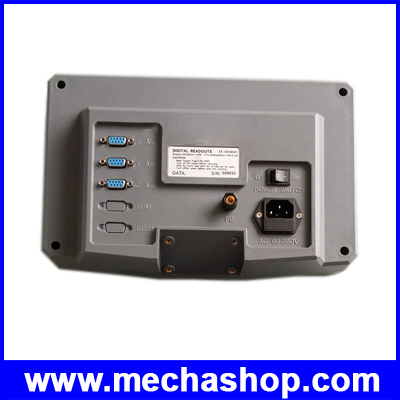

• Plug: DB9
• Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

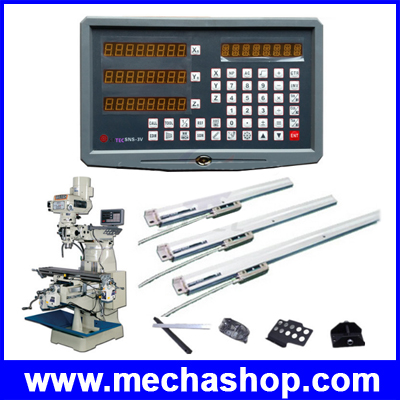

• Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
• The wide voltage AC80-260V can be widely used in all over the world.
• We offer US, AU, EU, UK different type plug suite for different countries if need.
• It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

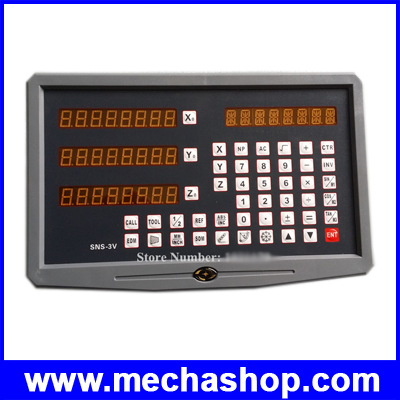

Function

1. zero clearing
2. reset
3. mm/inch mode
4. ABS/INC coordinate conversion
5. 200sets sub datum
6. power off Memory;
7. center of1/2
8. liner error compensation
9. sleepping mode
10. Clear 200 sets Sdm datum;
11. ABS/INC mode
12. calculator
13. drilling of circumference
14. drilling of oblique line
15. machining of inclined plane
16. machining of circular arc
17. lathe function(match)
18. Rectangular lumen gradual processing
19. digital filtering
20. vibration filtering
21. Radius /Diameter fucntion
22. Lathe function

1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 142mm (0-1142mm)
3. Plug: DB9
4. Resolution: 0.005mm / 0.0002“ (0.001mm is option from extra)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 2.5 or 3 Meter (about 9 feet)

Linear scale dimension
