1. Starting up with low speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.
4. the generators, adopting patented permanent magnet rotor alternator, with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability.

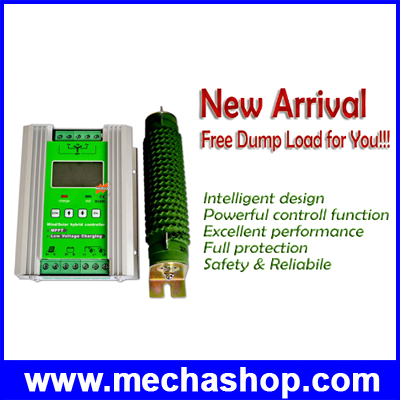

Part.2  MPPT HYBRID WIND SOLAR CONTROLLER (600W Wind + 600w Solar, 12V&24V auto.)

Features:

1. The Wind turbine charging part and Solar charging part are independent of each other, can make Wind turbine controller or solar controller using independent (As a Wind turbine controller cannot use light control function). Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used; In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately launched the stepless unloading function,protection system of the equipment. Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable
2. Discharge part working mode can be set, light control mode, time control function etc, The user can be set up according to the requirements on its own combination.
3. Manmachine interface of the controller USES a custom LCD screen and four key operation mode, the user to use simple and easy to use, popular and easy to understand, convenient and quick.
4. The controllers with perfect protection function, including: lightning counter-attack, solar charger, over-voltage automatic braking, storage battery reverse connect and open protection, etc.

Parameters

SYSTEM CONNECTION

1, Grid Tie Wind Solar Hybrid Power System Connection

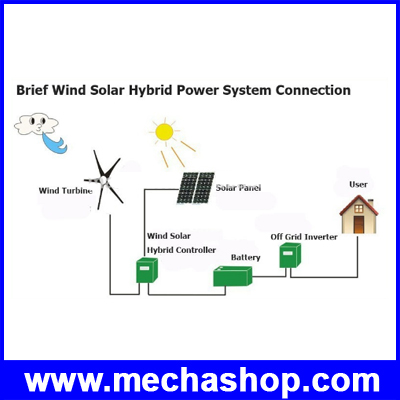

2,Off Grid Wind Solar Hybrid Power System Connection

Off grid inverter transfer battery power to appliances directly. It is independent from grid. It means when grid fails, the system still can work.

And please kindly note below two tips:

1. Total power of all your loads should be lower than inverter power.
2. If the load is water pump or other inductive loads and capacitive loads (air conditioner, fridge, coffee machine, etc), the inverter power should be 3-5 times higher than the loads power.

Application
