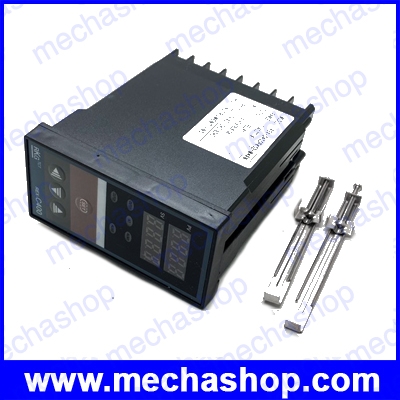

เครื่องควบคุมอุณหภูมิ Dual Digital RKC PID temperature controller REX-C400FK02-M*AN LED display Relay Output
Features:
- 100% Brand New
- Color: Black
- Size:11 x 9.5 x 4.8cm(LxWxH)
- Cold-end compensation tolerance: +2°C (can be modified by software in 0-50°C)
- Resolution: 14 bit
- Sampling cycle: 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by: LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output: contact capacity 250V AC 3A (resistive load)
- Alarm function output: 1 way
- Contact capacity of output: 250V AC 3A (resistive load)
- Setting value (SV): identical to measuring range (PV)
- Proportional band (P): 0-full range (ON/OFF control when set to 0)
- Integral time (1): 0-3600 sec (No integral action when set to 0)
- Derivative time (D): 0-3600 sec (No derivative action when set to 0)
- Heat-reset proportional cycle: 1-100 sec
- Detective temperature range:0 to 400°C
- Insulation resistance: >50M ohm(500V DC)
- Insulation resistance: 1500V AC/min
- Power Consumption: 10 VA Service environment: 0-50°C
- environment with no corrosive gas 30-85% RH
รับประกันสินค้า 3 เดือน
