รายละเอียดสินค้า
บอร์ดควบคุมอุณหภูมิ ใช้สำหรับควบคุมช่วงอุณภูมิที่ต้องการ ตามที่กำหนด
ย่านการควบคุมอุณหภูมิอยู่ในช่วง -50 ถึง 110 องศาเซลเซียส

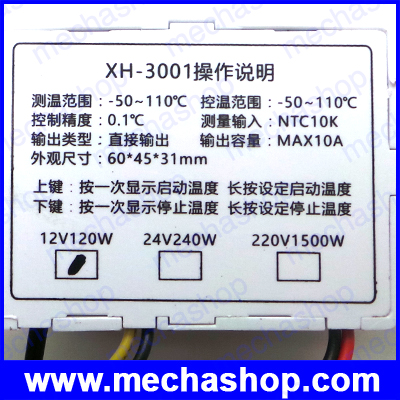

Features:
- Supply voltage: 12V
- Temperature range: -50-110 degree
- Control accuracy: 0.1 degree
- Load power: 12V / 120W
- Measuring input: NTC10K waterproof probe L = 1Meter
- Output capacity: 10A
- Installation pitch: 73mm (aperture 4mm)
- Dimensions: 60 * 45 * 31mm
12v Wiring:
Tip: 12V DC power supply or you can use a transformer power supply 12V output
Note: The product is directly output, so when the output terminals are not connected load, do not energized, to prevent contact with two wires and ignition
What is a direct output:
This thermostat output and input voltage are synchronous, meaning that the thermostat in the operating state (lights), How much input voltage and How much is the output voltage directly.When the thermostat (lights out) in the work, the output end there will be no voltage output
Intelligent judgment modes of operation:
Start temperature Start temperature> stop temperature = cooling mode
Heating mode setting mode:
Setting Tips: Start temperature
Setting mode:
1. Long Press up button, start the temperature of the flash,Through up and down keys to set the start temperature
2.Long Press Down button, stop the temperature of the flash,Through up and down keys to set the stop temperature
Use case:
Control water heaters, heated to 65 degrees to stop, the temperature dropped to 50 degrees to start heating again, how to set?
Step 1: Determine the operating mode for the heating mode, starting temperature Step Two: long Press the up button, the temperature starts flashing up and down keys to set the starting temperature of 50 degrees
The third step: Press the button down, the temperature stops flashing, stop by the arrow keys to set the temperature to 65 degrees, setting is completed.
Cooling mode is set up:
Setting Tips: Start temperature> stop temperature (the program automatically determines the operating mode to cooling mode)
Setting mode:
1. Press the button on the key to start the temperature of the flash, up and down keys to set the start temperature
2. Long press the key button to stop temperature flash, stop up and down keys to set the temperature value
Use case:
Control farms, ventilate to 26 degrees stopped, the temperature rose to 28 degrees start cooling again, how to set?
Step 1: Determine the operating mode is a cooling mode, starting temperature> stop temperature
Step Two: Long Press the button raised, the temperature starts flashing up and down keys to set the starting temperature of 28 degrees
The third step: Press the button down, the temperature stops flashing, set the stop up and down keys to a temperature of 26 degrees set.
Tip: set the heating mode, if you do not accidentally set the temperature set value is inverted, the output light is off, the load does not work, if there is the case after setting above, you can check the temperature value is not reversed .
package include:
- 1pc -50-110 Degree Heat Cool Digital Thermostat
รับประกันสินค้า 15 วัน
