รายละเอียดสินค้า

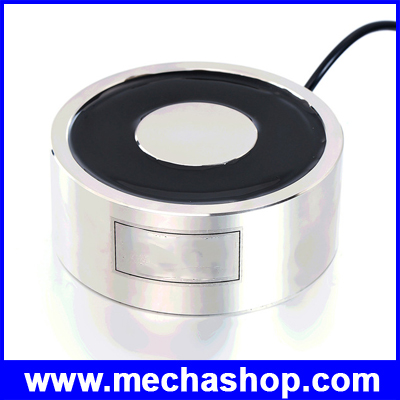

อิเล็กโตแมกเนท แม่เหล็กไฟฟ้า P100/40 DC 12V Electromagnet Lifting 200KG Solenoid Sucker Holding Electric Magnet
>> เช็คสต๊อคสินค้า <<
Description
- Electric lifting magnet.
- Powerful and compact.
- Smooth and flat surface.
- Low consumption and reliable.
- Ambient temperature within 130 degrees.
- Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc
- suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.
- Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.
- Model: P100/40
- Item:Holding Electric Magnet
- Input Voltage: DC 12V
- Power Consumption: 15W
- Holding Force: 200kg
- Material: Metal
- Color: Silvery
- Diameter: 100 mm
- Center Diameter: 42 mm
- Height: 40 mm
- Lead Length: 200 mm

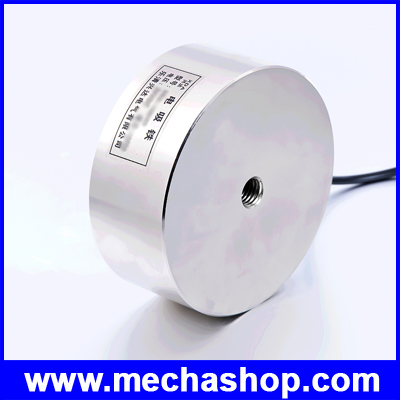

- Thread Size: M10
Package Included
- 1 x P100/40 15W Electric Lifting Magnet Holding Electromagnet Lift 200Kg Solenoid
รับประกันสินค้า 1 เดือน
