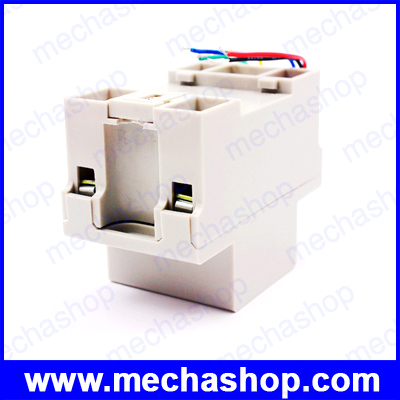

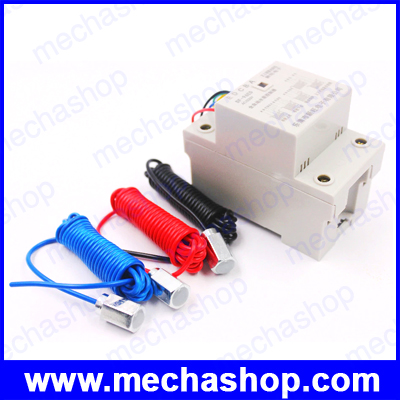

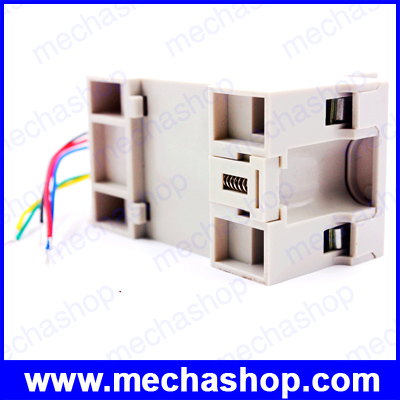

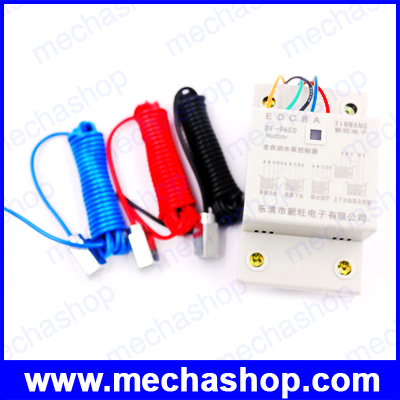

เครื่องควบคุมระดับน้ำอัตโนมัติ ลูกลอยอัตโนมัติ DF96 ED AC 220V 10A Din Rail Mount Float Switch Auto Water Level Controller with 3 probes สายเซนเซอร์ 2m
>> เช็คสต๊อคสินค้า <<
รายละเอียดสินค้า
- รุ่นสินค้า: DF-96ED
- แรงดันไฟฟ้า: AC 220V/50HZ
- กระแสสูงสุด: 10A (ใช้การหน่วงเวลา 30A)
- การติดตั้ง: ติดตั้งบนราง
- การใช้พลังงาน: ≤2W
- การส่งผ่านสัญญาณ : รัศมี 500 เมตร
- ขนาด: 126 * 88 * 51 มม.
แพคเกจ:
- สวิตช์ควบคุมระดับน้ำ 1 ชิ้น
- เซนเซอร์ 200 ซม. 3 ชิ้น
Single-control UP pool (water storage) installation instructions shown in figure 1
- A(red)-Upper water level control point. When water level gets to A point, the probe touch water and controller can stop the pump by auto.
- B(blue)-Lower water level control point. When water level gets off B point, the probe out of reach water and controller can start the pump by auto.
- C(black)-Should be placed in bottom of pool as the common line.
- D(green) and E(yellow)are connected with C (black).
Single-control DOWN pool(drain water)installation instructions shown in figure 2.
- E-Upper water level control point. When water level gets to E point, the probe touch water and controller can start the pump by auto.
- D-Lower water level control point. As liquid level gets off D point, the probe out of reach water and controller can stop the pump by auto.
- C-Should be placed in bottom of pool as the common line.
- A&B-disconnected
Lack of water protection installation instructions shown in figure 3.
- C&D-Lower water level control points. When water level gets off this point,
- C or D probe out of reach water and controller can stop the pump by auto.
- E&C-short-connected;
- A&B-disconnected
Joint control UP and DOWN pool installation instructions shown in figure 4.
- A-Upper water level control point in UP pool. When water level gets to A point,the probe touch water and controller can stop the pump by auto.
- B-Lower water level control point in UP pool. When water level gets off A point, the probe out of reach water and controller can start the pump by auto.
- C-Should be placed in bottom of UP and DOWN pools as the common line.
- D-Lower water level control point in DOWN pool. When water level gets off D point, the probe out of reach and controller can stop the pump by auto.
- E-Upper water level control point in DOWN pool. When water level gets to E point, the probe reach water and controller can start the pump by auto. Then pool starts to drain water. If not, E point disconnected
Used to solve problem:
1. On power but no work:
- a. Check the red indicator is on or not. If not, make the connection is good enough;
2. When water level is above or below probes but the pump does not start or stop by auto, Please check it like the following.
- a. Whether the probe is placed too high or low so that water level can reach or out of reach it
- b. The connection of upper &lower line or probe is dislocation by error or short connected
- c. To check the probe whether it is rust or not or the connection is good enough.
- d. C- Check the common line whether it is placed in the lowermost bottom of pool.
Product Description
- Type: DF-96ED Updated version
- Working voltage: AC 220V/50HZ
- Max Current: 10A(Use the 30A Delay)
- Installation: Din Rail Mount
- Power consumption≤2W
- transmission signal: 500M
- Size: 126*88*51mm
Package include:
- 1pcs Automatic Water Level Controller Switch
- 3pcs 200CM Sensor
