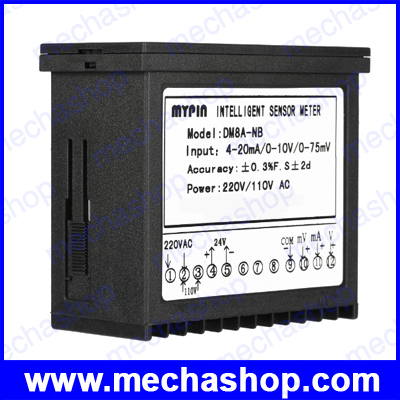

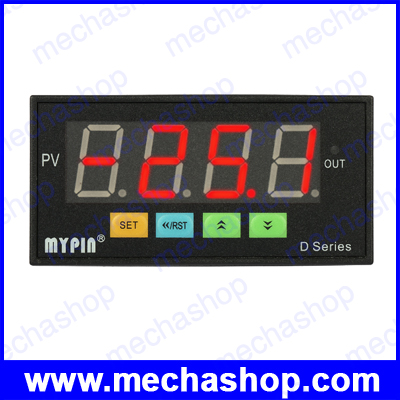

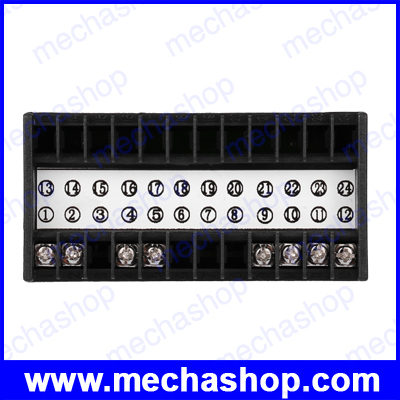

จอแสดงผลค่าสัญญาณไฟฟ้า แสดงผลค่าสัญญาณของเซนเซอร์ Digital Sensor Meter Multi-functional Intelligent LED Display 0-75mV/4-20mA/0-10V Input
>> เช็คสต๊อคสินค้า <<
This multi-functional sensor meter can measure Current or Voltage signal input in the range of 0-75mV/4-20mA/0-10V. It can be used with 2-wire transformer, pressure sensor, 4-wire weighing sensor, remote pressure meter resistance transmitters, potentiometers, transducers and other sensor measuring devices.
Features:
- High precision, stable performance and easy operation.
- 4-digit LED display for clear measurement readings.
- Input signal: 4-20mA, 0-10V, 0-75mV.
- The sampling rate for measurement input is 10 measurements per second.
- It can be used with transmitter, pressure sensor, liquid level sensor, weighing sensor and so on.
Specifications:
- Model: DM8A-NB
- Power Supply: 110/220V AC
- Auxiliary Power Supply: 24V DC
- Power Consumption: <3W
- Accuracy: 0.3%F.S±2dgt
- Sampling Rate: ≤8 times/second
- Input: 4-20mA, 0-10V, 0-75mV
- Output: None
- Item Size: 95 * 85 * 48mm / 3.74 * 3.35 * 1.89in
Package List:
- 1 * Universal Sensor Meter
- 2 * Bracket
- 1 * User Manual (English)
รับประกันสินค้า 1 เดือน
