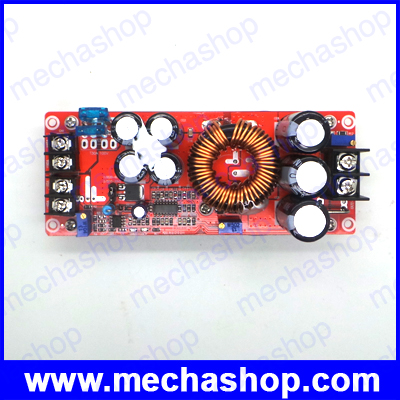

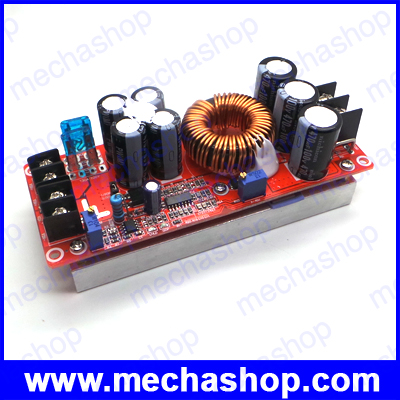

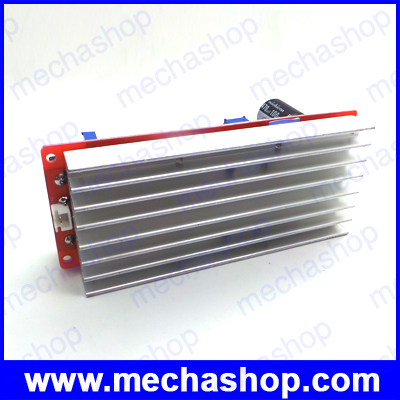

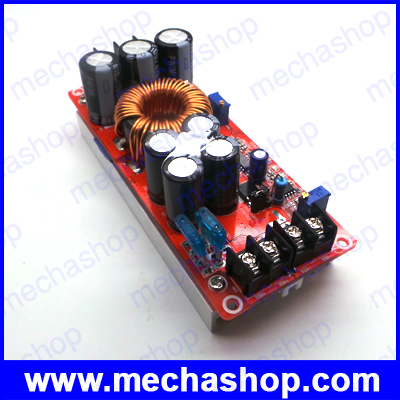

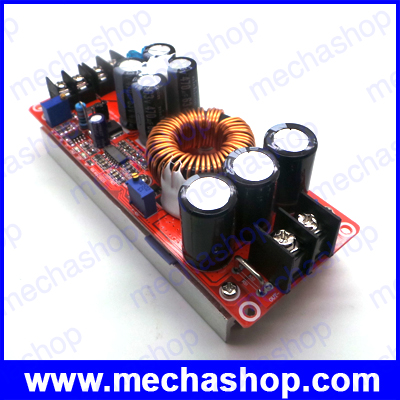

ดีซีคอนเวอร์เตอร์ 1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V
รายละเอียดสินค้า
- Module Properties: non-isolated step-up module (BOOST)
- Input voltage: 8-60V
- Input Current: 20A
- Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
- Output voltage: 12-83V continuously adjustable
- Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller
- the output current)
- Constant Range: 0.5-20A
Output Power:
- Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,
- Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W
- If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,
- The current per module can be adjusted to 15A.
- Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
- Operating frequency: 150KHz
- Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)
- Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)
- Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.
- Input reverse polarity protection: None, (if necessary, please enter the string into the diode)
- Output Counter filling: Yes, for charging plus blocking diode is not required.
- Installation: four 3mm screws
- Connection: solderless terminals output
