รายละเอียดสินค้า

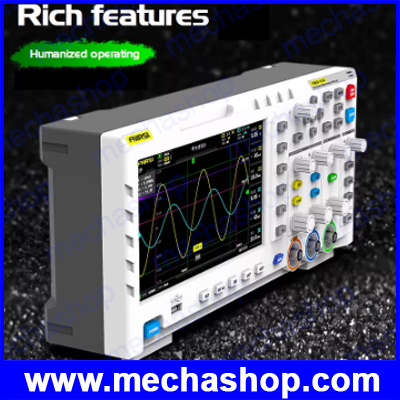

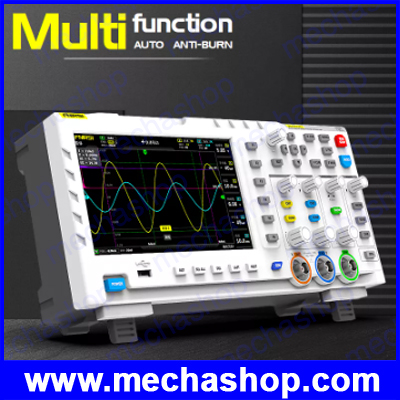

ดิจิตอลออสซิโลสโคป FNIRSI DSO-TC2 Portable Digital Oscilloscope Transistor Tester 2-in-1 Multi-function Multimeter Diode Voltage LCR Detect PWM Out
>> เช็คสต๊อคสินค้า <<
Features:
- Built in DDS signal generator, support 12 kinds of function signal.

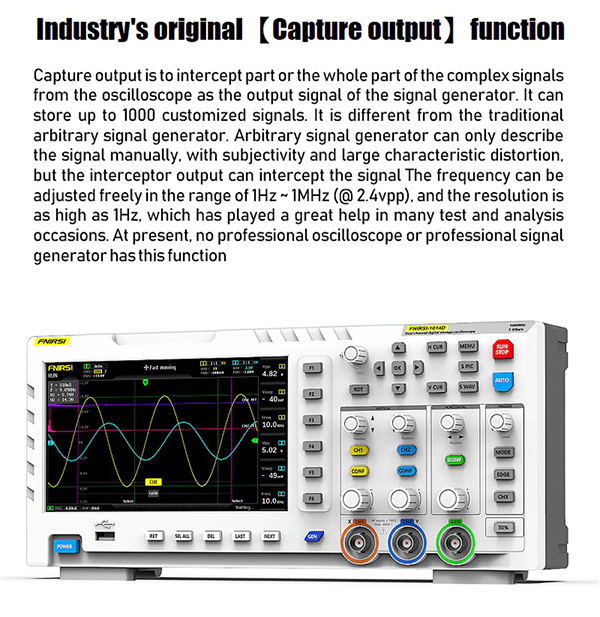

- Capture output signal function, which can store up to 1000 capture signals.

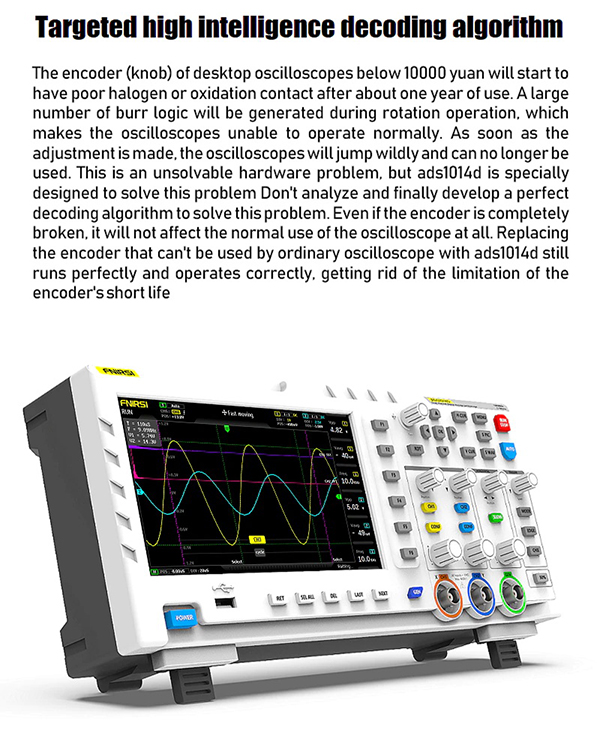

- Targeted high intelligent decoding algorithm, the encoderlifeis infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.
- With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate（1X = 5MHz, 10X = 100MHz).
- Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
- High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.
- Up to 12 parameters measurement：VPP，VP，Vmax，Vmin，Vavg，Vrms，Frequent，Duty+，Duty-，Time+，Time-，Period.

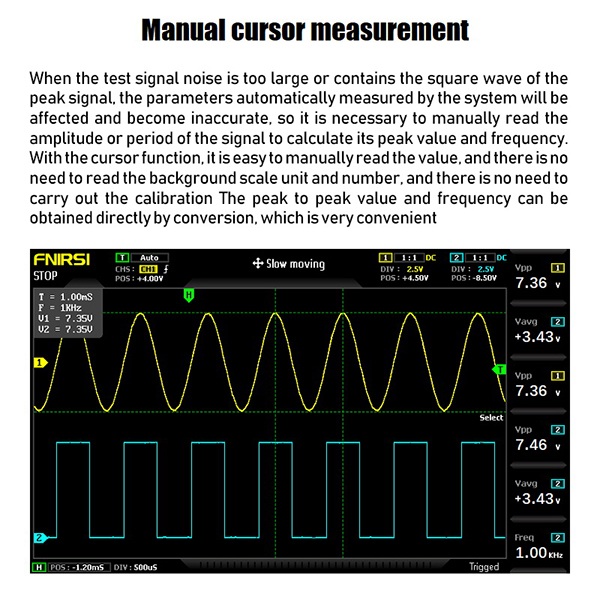

- Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.

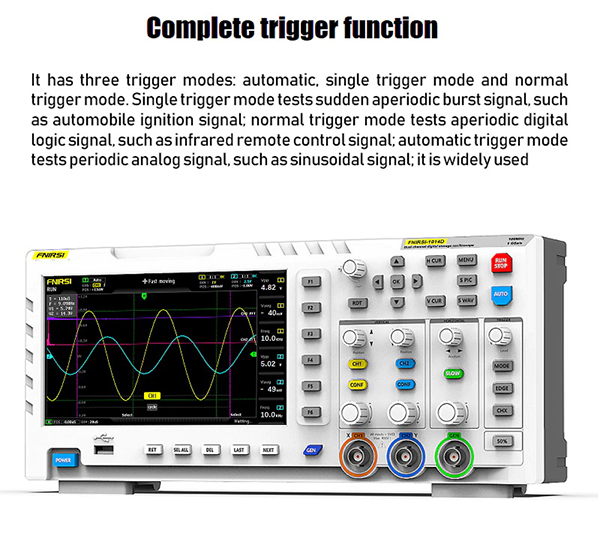

- Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.

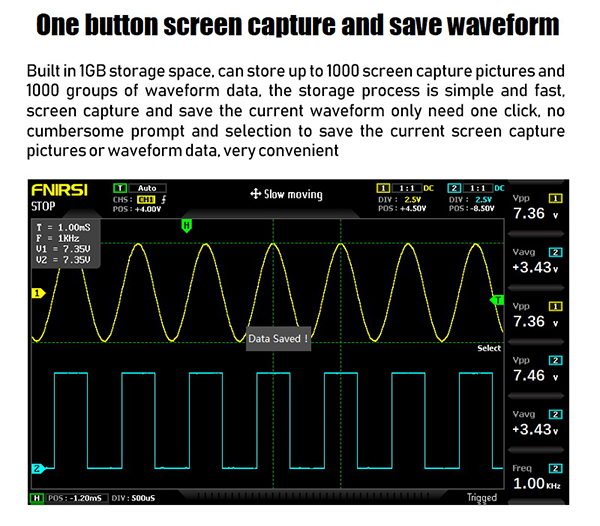

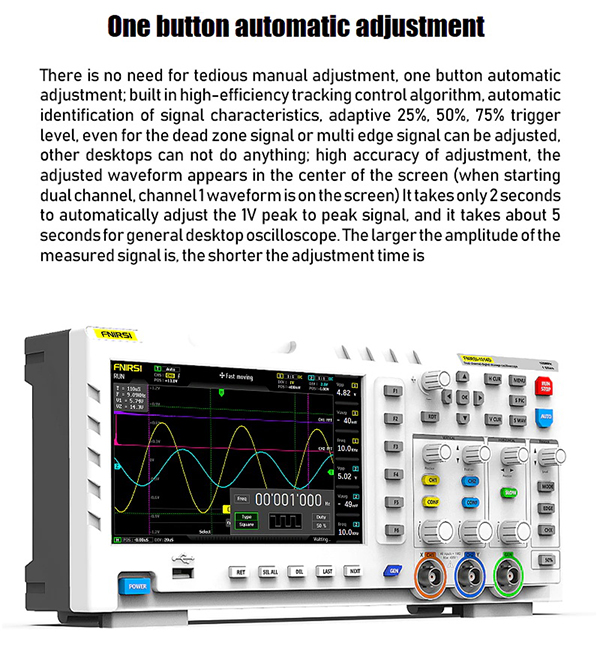

- Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.
- Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
- Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
- Equipped with a USB interface, which can be connected to a com-puter to share its screenshots with the com-puter, which is convenient for secondary analysis.

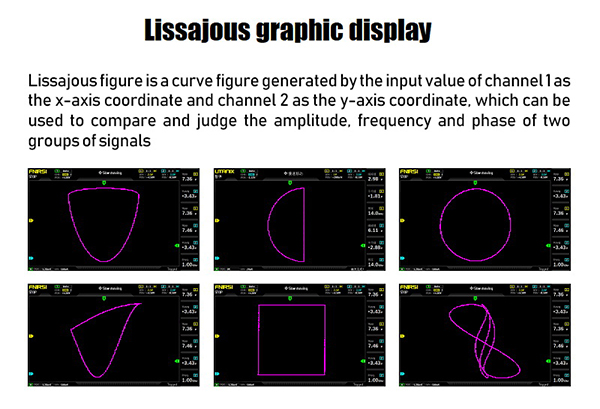

- Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
- FFT display function, can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.
- With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.

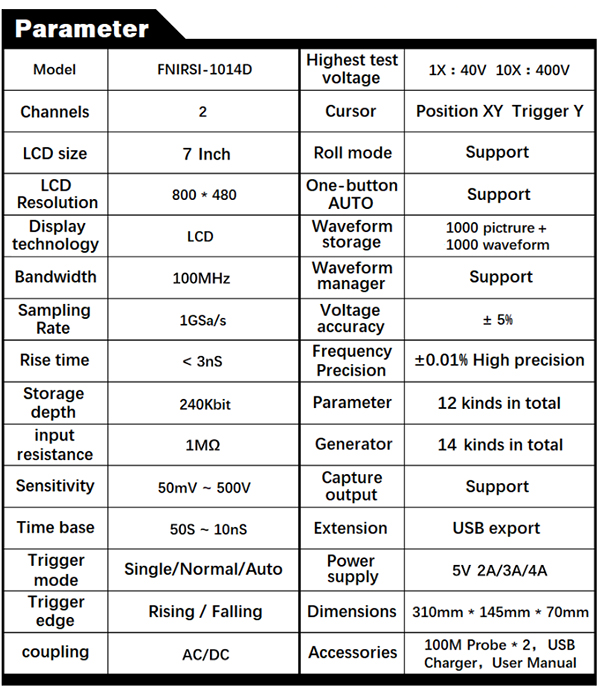

Specifications:
- Material: ABS
- Ana-log band width: 100MHz * 2

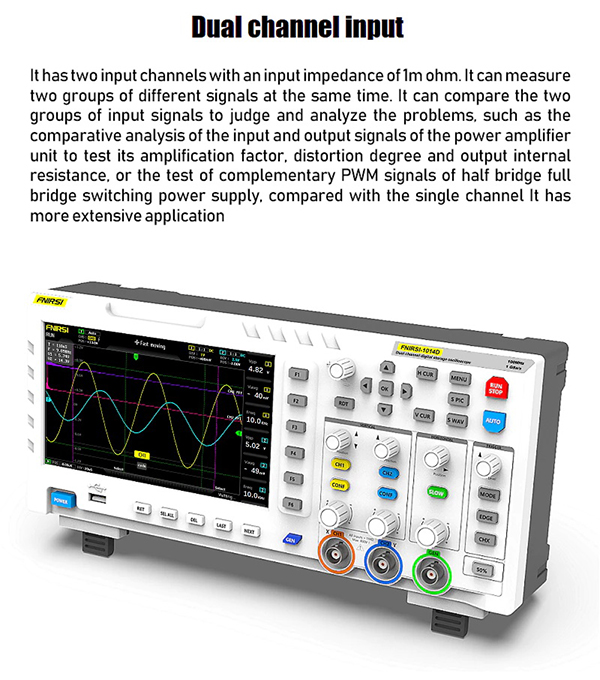

- Number of channels: 2 channels
- Maximum real time sampling rate: 1GSa/s
- Vertical sensitivity: 50 mV/div ~ 500 V/div
- Horizontal time base range: 50S/div ~ 10nS/div
- Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1MΩ
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Rising edge/Falling edge
- External trigger voltage 0~40 V
- Extension ports: USB picture export
- Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in
- Package weight: 1500g / 3.3lb

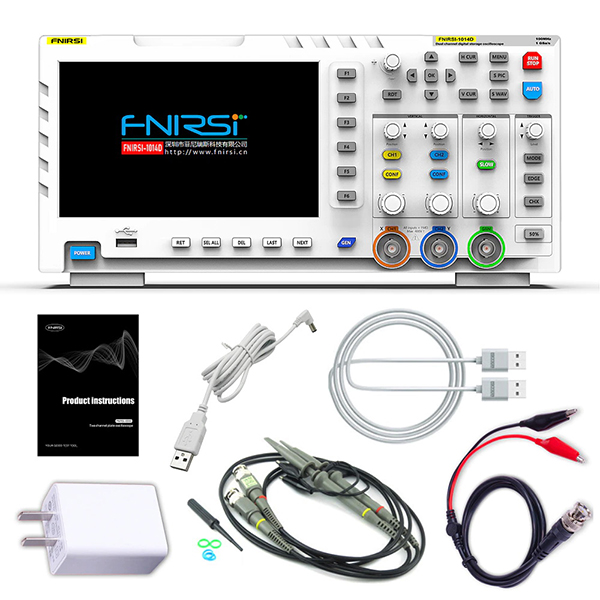

Packing list:
- 1 * FNIRSI-1014D Oscilloscope Host
- 2 * Matching 100MHz Probe (1X and 10X）
- 1 *Clip
- 1 * 5V2A Power Adapter
- 1 * USB Data Line
- 1 * English User Manual
รับประกันสินค้า 6 เดือน
