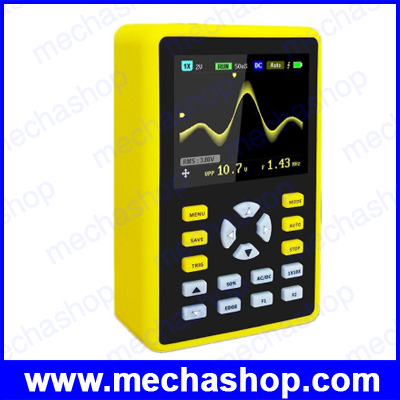

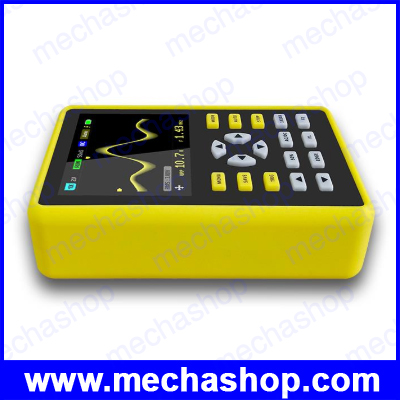

ดิจิตอลออสซิโลสโคป FNIRSI-5012H 2.4inch IPS LCD Mini Digital Oscilloscope 100MHz 500MSa/s Waveform Storage
The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth.With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. There is no need to worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position.Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution IPS full-vision technology, the visual effect is very good. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 5000mah high-quality lithium battery, can be used continuously for 12 hours when fully charged.The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.

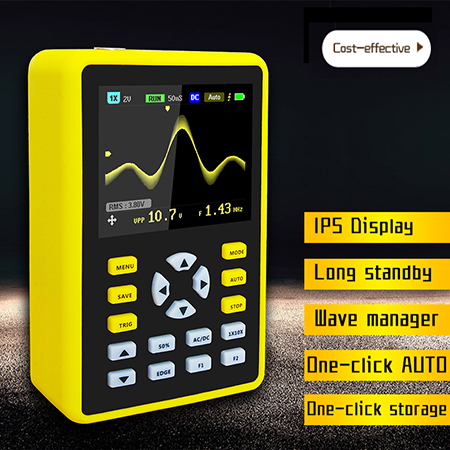

Features:
- Intelligent anti-burn,1X Can withstand up to 600V withstand voltage
- Afterglow display technology
- 2.4 inch color display screen with IPS technology
- 100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)

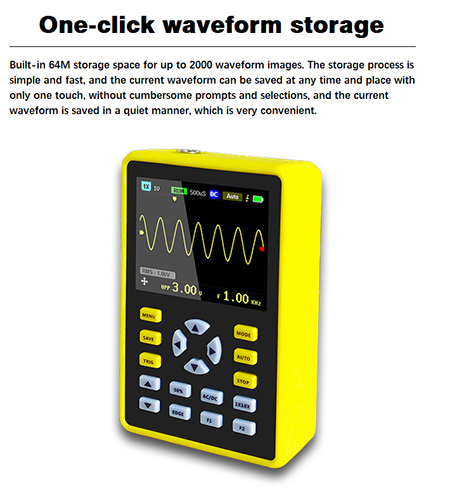

- One-button waveform storage
- Built-in 64M storage space, the maximum storage of 2000 waveform pictures

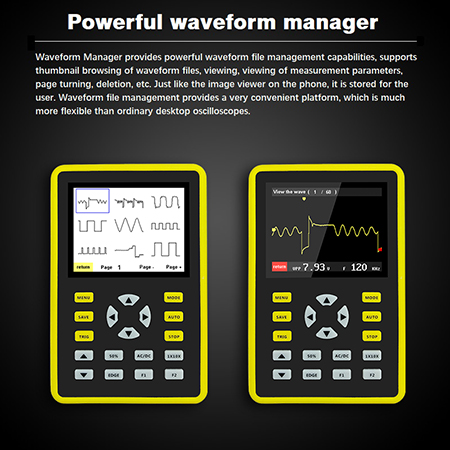

- Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
- High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
- Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time
- At any time, the waveform display (pause function) is frozen

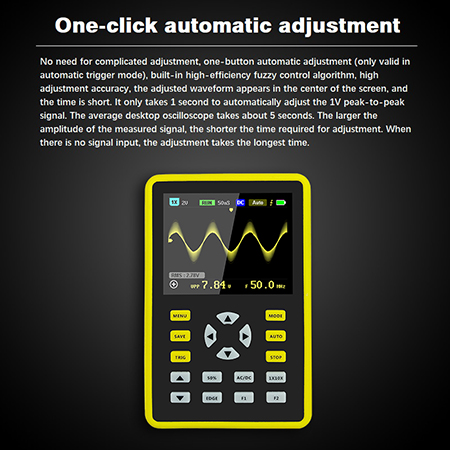

- Equipped with high efficiency One-button AUTO

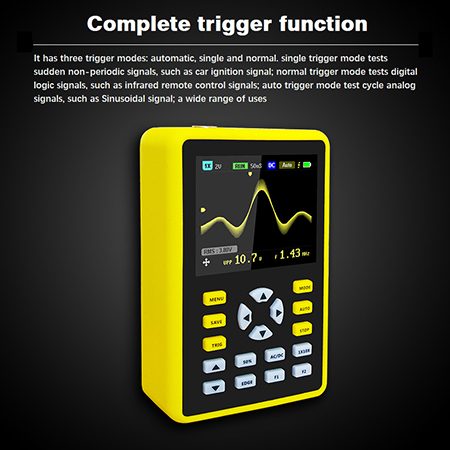

- Complete triggering function (single, normal, automatic)
- Built in 5000mAh rechargeable lithium battery,Fully charged for 12 hours of continuous use
- Screen brightness adjustment
- Memory compression technology, waveform refresh screen does not flicker

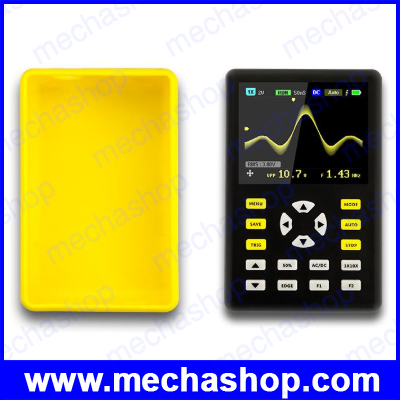

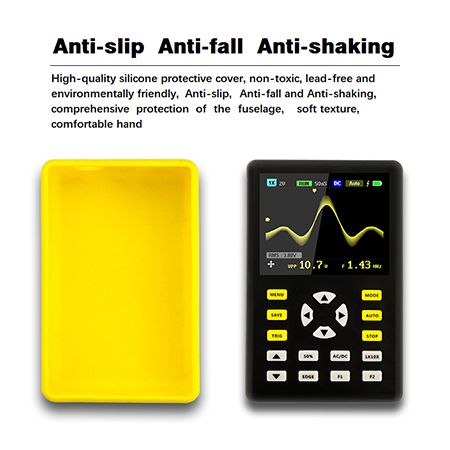

- Anti-slip anti-drop silicone sleeve
- Ultra small volume, easy to carry

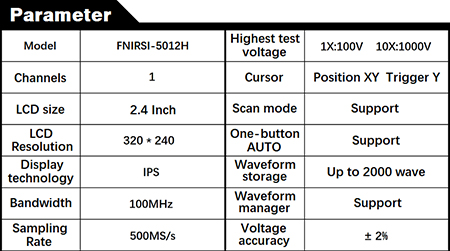

Specifications:

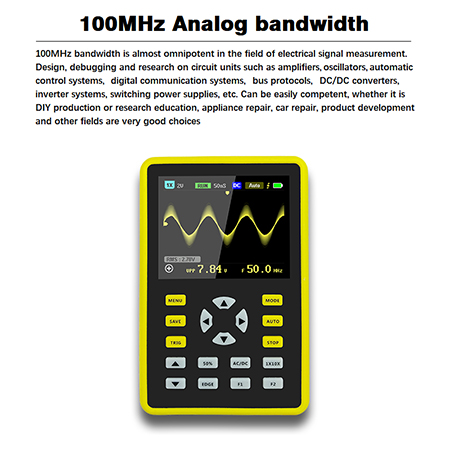

- Analog band width: 100MHz
- Maximum real time sampling rate: 500MS/s
- Vertical sensitivity: 50 mV/div ~ 100 V/div
- Horizontal time base range: 50S/div ~ 6nS/div
- Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
- Storage depth: 128KB
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Ascending/descending edge
- External trigger voltage 0 – 80 V

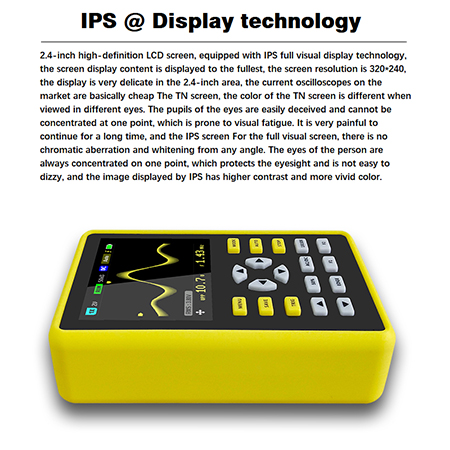

- Display: 2.4 inch – 320*240 – IPS process
- Power supply: 5000 mAh lithium battery
- Size: 114mm x 74mm x 33mm
- Weight: 300g
Package Includes:
- 1 x ADS5012H Oscilloscope Host
- 1 x Matching 100MHz Probe(1X and 10X)
- 1 x Micro USB Data Line
- 1 x User Manual (English)
- 1 x High Quality Package
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
รับประกันสินค้า 6 เดือน
