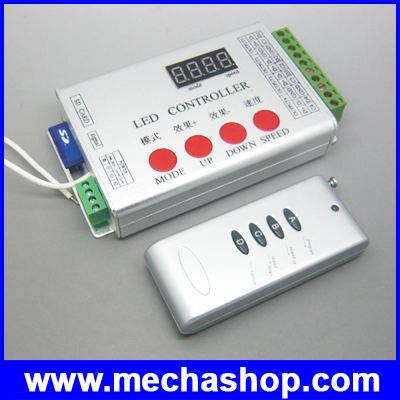

อุปกรณ์ควบคุมหลอดไฟ LED Controller DMX512 RGB Remote Controller SD Card LED Controller for Dream color led strip
สำหรับควบคุมหลอดไฟLEDใช้ตกแต่งภายในภายนอก เช่น บ้าน โรงแรม ร้านค้า ร้านอาหาร ออฟฟิศ อื่นๆ ฯลฯ
สำหรับเจ้าของโครงการ ผู้รับเหมา เจ้าของบ้าน สั่งซื้อจำนวนมากราคาพิเศษ
คุณสมบัติสินค้า
Work voltage: AC/DC12-24V, DC5V
Maximum power consumption: less than 3W
Output signal: 4 TTL/RS485 signal
with a carrying capacity: 4 * 1024 points
Control mode:? extrapolation SD card (maximum 2GB)
Dimension: 120 * 70 * 24mm
High-performance ARM 32-bit processor program
Variety of chip signal output, 4 Channel DMX512 signal output, 4 * 170 points
10 speed adjustment, supports 32 file program
Same time the power-on, multi-camera control (AC-powered only)
RGB hopping signal when without SD card or card error
Set parameters brownout self-preservation
Can be equipped with a RF remote control
Compatible with LPD6803, P9813, TM1809 UCS1909 WS2811, BS0902, DMX512 communication chip (Press “MODE” key for 3 seconds to switch IC control)
Setting description:
Press the MODE button to switch between automatic and manual modes of play, the digital control of the cursor when the automatic mode will cycle running, the controller automatically play all the files inside of the SD; digital tube cursor still in the middle significantly depending on manual mode, control play the selected file.
In the manual mode, press the UP key effect file plus one, minus one press DOWN key effect file.
Press the SPEED button to adjust the playback speed, the larger the number, the slower speed when SPEED = 0, not detected sync signal, the fastest, this mode is suitable for the occasion does not require synchronization.
Output chip set, press and hold the MODE key to enter the output chip set, then press UP Press to switch between different chip select chip can exit, and then press the MODE key.
RF remote control buttons ABCD correspond MODE, UP, DOWN, SPEED, set method similar
Wiring instructions:
DAT for the data lines, a data input terminal connected to the lamp;
CLK is a clock line, a clock input terminal that is connected to the lamp (two-wire IC when used);
GND for common ground, lamps connected to the signal ground;
with DMX512 lamps, CLK (D +) and DAT (D-) is connected to the lamp corresponding to the signal input terminal;
DC5V power input connected to a 5V switching power (with DC5V lamps optional);
AC12V for power input, a power supply connected to the AC/DC12-24V;
SD Card Operations:
Replacement program effect files, SD card formatted to FAT (FAT16) format first, then file suffix. the bin program files are copied to the SD Safely Remove the SD card, SD card loaded into the master controller, and then power, normal circumstances controller signal lights will flash;
When multiple LED effect files need to be stored in an SD card one by one to copy the file to the SD card, how many files may not be synchronous replication, this error may cause the SD card file, the file is copied the sequence playback;
LED effect files can not be for the Chinese name, and file name length should not be more than eight characters, or it may cause SD card file error;
such as not working properly, check the SD card format is FAT (FAT16), SD card is inserted correctly, the SD card is good, SD card LED file LED whether the file is the file of the current controller support type, etc.;
รับประกันสินค้า 3 เดือน
