• Mounting hole size : 16mm

• Switch specifications : 3A/250VAC

• Waterproof pushbutton switch

• Mounting diameter: 16mm

• Switch combination : 1NO 1NC
• Head shape: Flat

• Lamp type : Power logo luminated

• Contact resistance : <50m

• Insulation resistance : >1000m

• Dielectric intensity : 2000VAC

• Ambient temperature : -20~+55

• Machanical life : 500,000 cycles

• Electrical lif : 50,000 cycles

• Panel thickness : 1~10mm

• Nut torque : 5~14Nm

• Operation pressure : About 3~5N

• Degree of protected : IPP67, IK10

• Button : Nickel plated brass / Stainless stell

• Enclosure : Nickel plated brass / Stainless stell

• Operation type: Latching

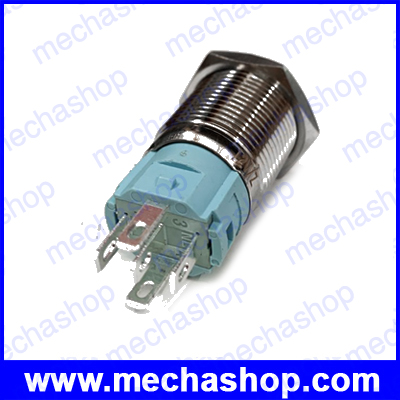

• Terminal type: PIN terminal 5 Pin  ( 1.บวก  2.ลบ  3.Com  4.NO  5.NC )

• Base : PA66

• LED voltage: 12V

• LED life : 40000 hours

• LED logo color : BLUE
