รายละเอียดสินค้า

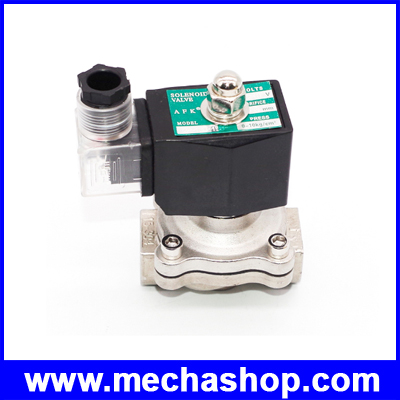

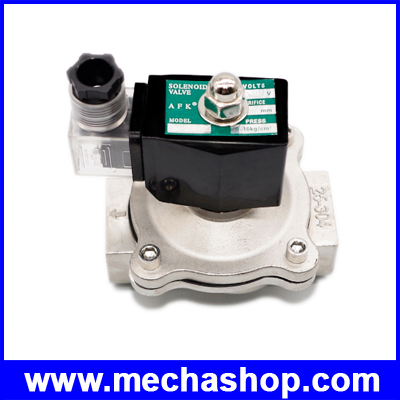

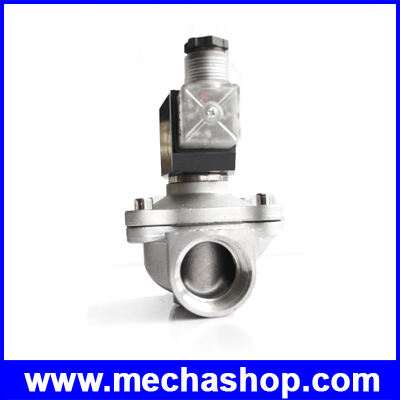

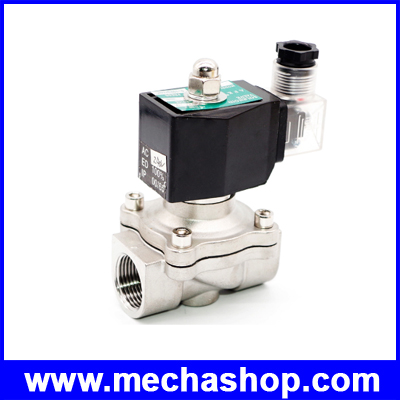

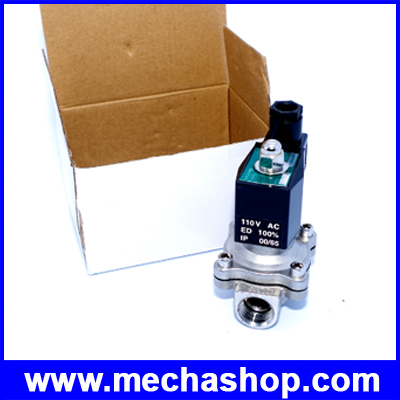

โซลินอยด์วาล์วไฟฟ้า 1 นิ้ว DN25 Solenoid Valve 304SS สแตนเลส เลือกแรงดัน 12Vdc,24Vdc,220Vac 142psi Seal NBR 80 องศา
General
- Great general purpose valve for many water, air, fuel, or gas projects
- 2-way, Normally Closed (energize to open, de-energize to close)
- Semi-Direct Acting Valve (allows for good low pressure performance and gravity feed capability)
- Fast acting
Port / Orifice Size
- 1″BSP (female) or NPT inlet / outlet port
- Large internal orifice ( internal orifice diameter)
- Cv value: 12
Pressure and Temperature
- 0 to 145 psi or Vacuum
- Max media temp: -5-80
- Excellent choice for low pressure applications due to semi-direct lift design
- Gravity Feed capable
Suitable Media
- Water
- Air
- Gases
- Diesel
- Gasoline (with or without Ethanol)
- Glycol
- Other media compatible with NBR/EPDM/VITON
Coil
- COIL OPTION #1: DIN CONNECTOR COIL (see pictures)
- Resin encapsulated coil (IP65 rating)
- Screw-down terminals inside the connector for your own cable/wire
รับประกันสินค้า 3 เดือน
