รายละเอียดสินค้า

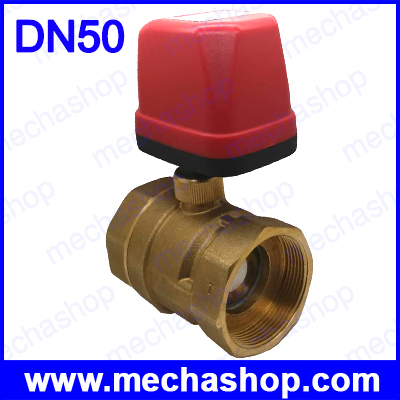

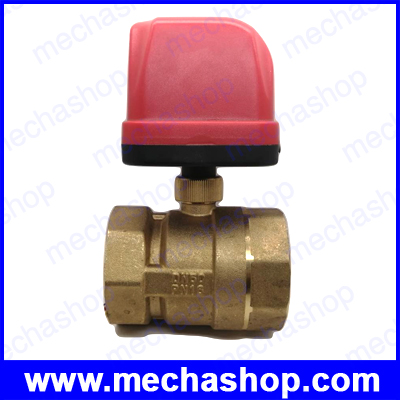

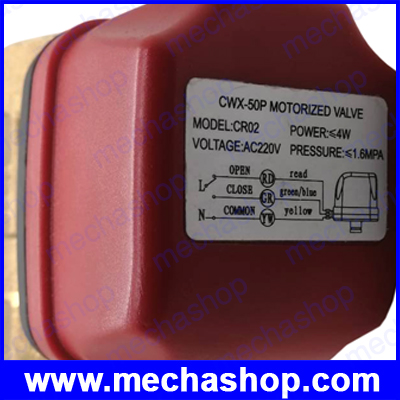

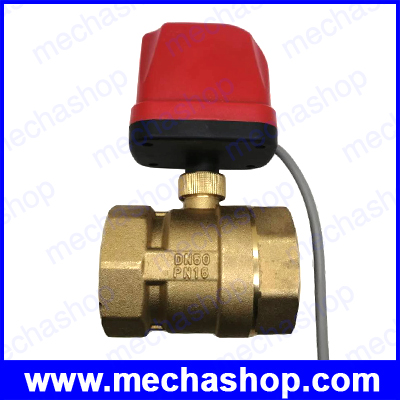

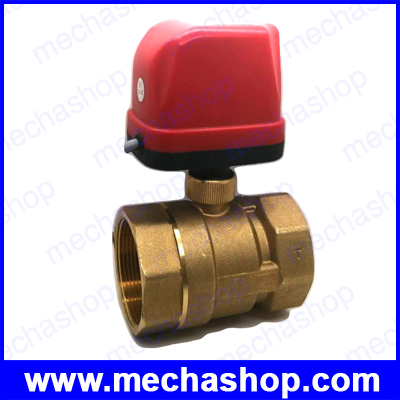

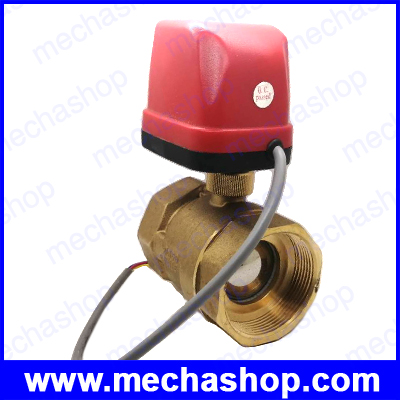

มอเตอร์วาล์วไฟฟ้า ทองเหลือง DN50 2 inch CWX-50p 3.5nm quick operation brass electric water flow control ball valve for water system CR02 220V
>> เช็คสต๊อคสินค้า <<
Features:
- Metal gearbox and POM gear design, low noise, perform reliably .
- Long service life: more than 100000 circles.
- Electric limit and machinery limit design, located accurately, avoid gear run continuously.
- Mufti-angle assembling, easy to install.
- Float ball structure, no leakage,especially suitable for heavy pollution conditions.
Technical Parameters:
- Voltage: AC220V
- Pipe Size: DN50 2″
- Control mode: CR02
- Nominal pressure: 1.6Mpa
- Power: ≤4W
- Output torque: 3.5NM
- Connection end: Pipe thread G
- Power consumption: 6VA
- Action time: <15S
- Close differential pressure: <0.4Mpa
- Medium temperature: 2-90
- Wire length: 30cm
Application:
- Heat energy meters, fire work, save water system.
- Auto control system, industrial mini auto control equipment.
- Water saving equipment, drinking water equipment.
- Air-conditioning fan coin(HVAC).
รับประกันสินค้า 6 เดือน
