รายละเอียดสินค้า

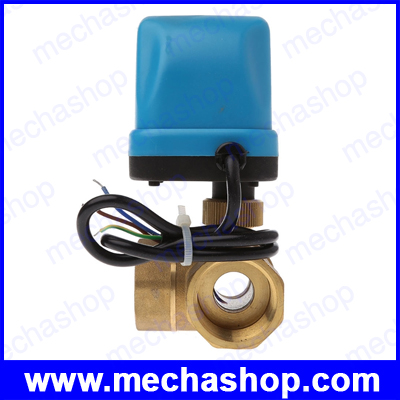

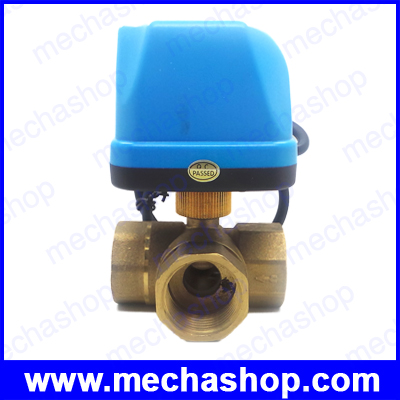

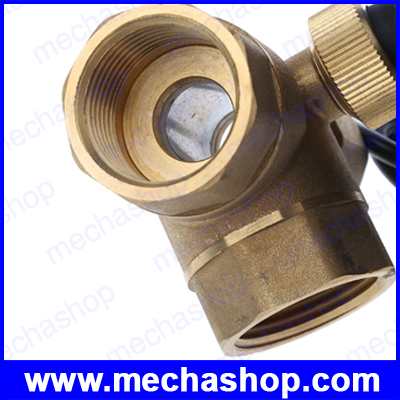

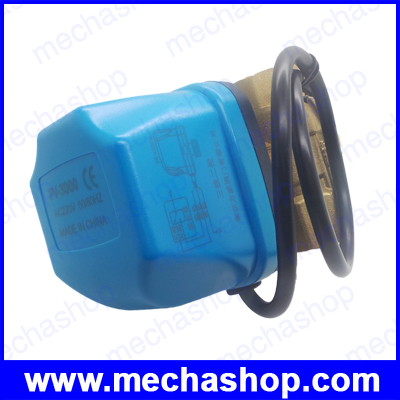

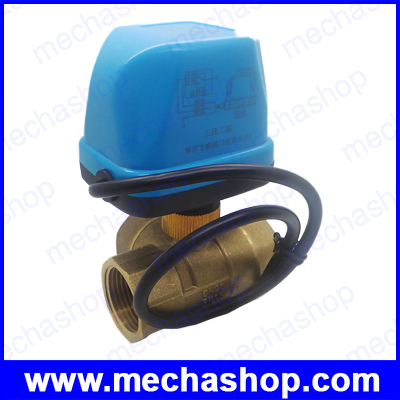

มอเตอร์วาล์วไฟฟ้าสามทาง Electric Motorized Brass Ball Valve DN25 AC 220V 3 Way 3-Wire ระบบน้ำร้อนน้ำเย็น
>> เช็คสต๊อคสินค้า <<
Features:
- Straight flow, large flow, no blocking by the slag
- Good waterproof and dirt-proof function (IP65)
- Actuator is easily disassembled and assembled.
- Actuator can be installed after the equipment and pipes are installed, so as to improve efficiency.
- LED indicates when switch on/off the valve, to detect whether the valve is wholly on/off.
- Highly energy saving, long life design.
- closed tightly due to high pressure when closing
- Actuator can be assembled in two directions
Specifications:
- Medium: Cold/hot water, 60% Ethylene Glycol
- Material: Brass
- Power Supply: AC 220V
- Model: DN25(G 1″)
- Structure Forms: Three Ways
- Operation Mode: Three Floating Point (24V AC) or ON/OFF
- Power: 6W (Only when the valves open and close)
- Running Time: 5-15 Seconds
- Nominal Pressure: 1.6MPa
- Medium Temperature: 2°~95°
- Maximum Differential Pressure: 1.0MPa
- Protection Class: IP65
- Connection Mode: ZG Internal Thread
Note:
- Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
- Due to the difference between different monitors, the picture may not reflect the actual color of the item
Package Contents:
- 1 x Ball Valve
- 1 x User Manual
รับประกันสินค้า 6 เดือน
