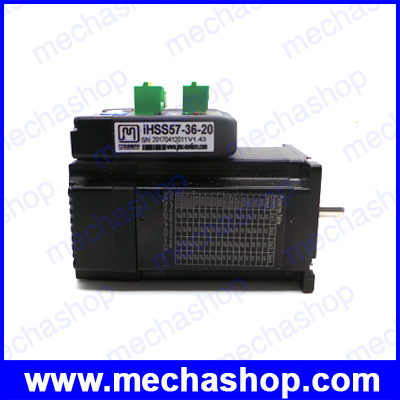

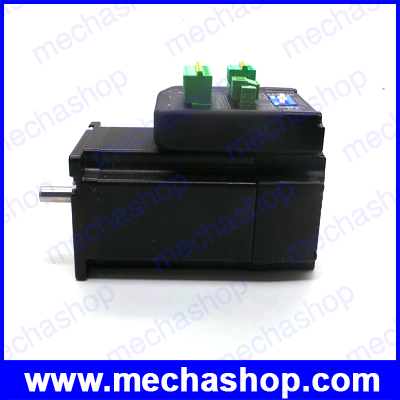

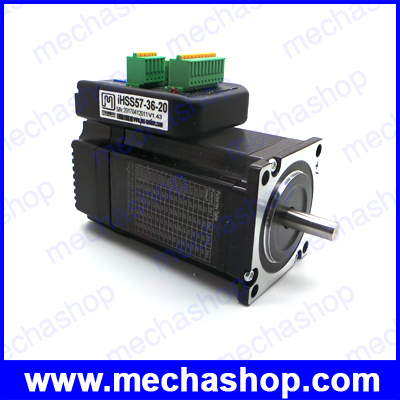

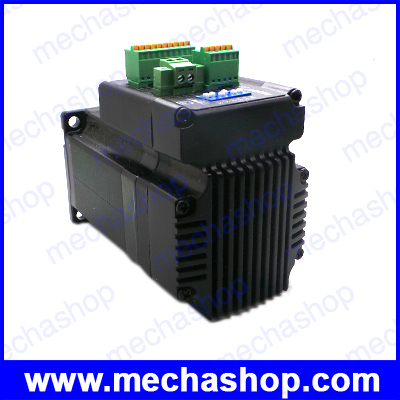

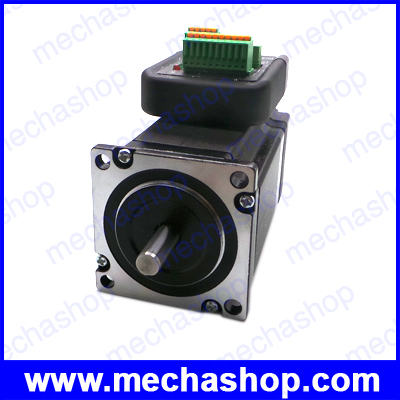

สเต็บเปอร์มอเตอร์ควบคุมแบบป้อนกลับ NEMA 23 2N.m 283ozf.in Integrated Closed Loop Stepper motor 36VDC iHSS57-36-20
JMC IHSS57 Integrated Closed Loop Stepper Motor is all-in-one closed loop stepper system which integrates closed loop stepper motor with digital driver. Servo control and digital stepper driving technology are perfectly merged into this smart system. Optical encoder with high speed position sampling feedback of 50μs built inside, can help system avoid losing-step, greatly improve low-speed instability and reduces noise. This Series products have the advantages of both stepper and servo, features in low heat, smooth motion, fast response, high speed and big torque output
Description
- NEMA 23 2N.m 283ozf.in Integrated Closed Loop Stepper motor 36VDC JMC iHSS57-36-20
- Integrated compact size for saving mounting space
- Without losing step, High accuracy in positioning
- 100% rated output torque
- Variable current control technology, High current efficiency
- Small vibration, Smooth and reliable moving at low speed
- Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
- User-defined micro steps
- No adjustment in general applications
- Over current, over voltage and over position error protection
- Green light means running while red light means protection or off lin
Typical applications:
- CNC, Printing, lazer, textile machine, etc.
Technical Specifications:
- Input Voltage: 24~50VDC(36V Typical)
- Output Current: 4.5A 20KHz PWM
- Pulse Frequency max: 200K
- Communication rate: 57.6Kbps
Protection
- Over current peak value 8A±10%
- Over voltage value 80V
- The over position error range can be set through the HISU
Environment
- Avoid dust, oil fog and corrosive gases
- Operating Temperature70°C MAX
- Storage Temperature-20°C~+65°C
- Humidity: 40~90%RH
- Cooling method: Natural cooling or forced air cooling.
Microstep Setting:

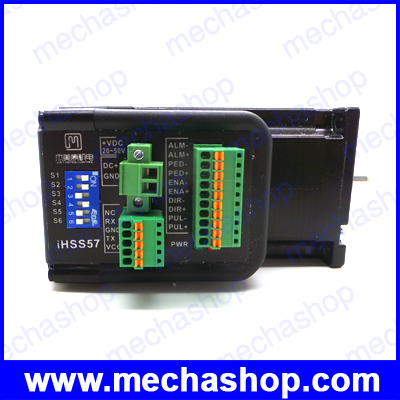

The micro steps setting is in the following table, while SW1,SW2,SW3,SW4 are all on, the internal default micro steps inside is activate,this ratio can be setting through the HISU.
ตัวอย่างโปรแกรม test กับ บอร์ด Arduino
สาธิตโปรแกรม
คู่มือสินค้า : download
รับประกันสินค้า 3 เดือน
