รายละเอียดสินค้า

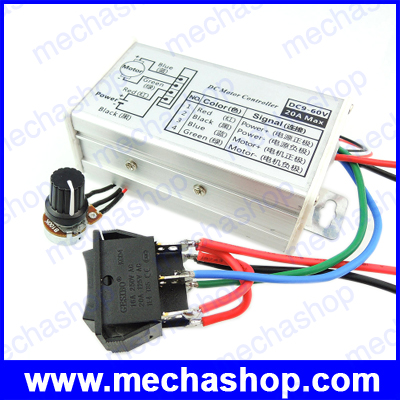

ควบคุมความเร็ว ดีซีมอเตอร์ กลับทางหมุนได้ (มีคลิป) PWM motor speed controller 12V/24V/36V/48V 20A DC motor variable speed reverse switch
>> เช็คสต๊อคสินค้า <<
Features:
- CCM5S DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).
- Suitable for the DC motor (or DC load) within 20A.
- Adjustable speed range is from 0%-100%.
- Item size:4.14*1.97*1.3″,weight:4.45oz
- Input supply voltage: 9V-60VDC(max)
- PWM frequency: 25kHz; Duty Cycle adjustable: 5%-100%
- Potentiometer with adjust speed swtich function,and button swtich function.
- Potentiometer cable length 0.79″,Button swtich cable length:0.79″.
- The item with metal shell and connective label,very easy to install and use.
คลิปแสดงวิธีการทำงาน
Specification
- Operating voltage DC9V-60V (General) linear output voltage under load
- Sustained current: 18A
- Control current: 0-20A
- Speed range 0%——100%
- Speed potentiometer
- Forward and reverse
- Fixed way
- Speed control principle of basins
- potentiometer Hole diameter7MM
- Size (does not include ear 91MM) width 50MM high 33MM
Operating instruction:
- Before you attempting to wire the controller, make sure power is off.
- WARNING:DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
- Connect wires refer to the “wiring diagram”
- Turn on the power.
- Adjust the potentiometer.
รับประกันสินค้า 1 เดือน
