ชุดปรับมุมเอียงตามแสงอาทิตย์พร้อมระบบควบคุม Solar Tracker Single Solar Panel Tracking Kits 16″ 12V DC Linear Actuator &Controller &Light Sensor &Remote (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
Solar tracking ระบบติดตามแสงอาทิตย์
Here for sale is Complete Single Axis Solar Tracker Kits, items Including a 400mm/ 16″ Stroke Length Linear Actuators &2PCS Silver Mounting Brackets and the Electronic Controller Set you need for a single axis solar tracker system.
Build your own frame and you will get a professional grade single axis solar tracker!
About the East-West Linear Actuator With Mounting Brackets
For the Linear Actuator, we have 200mm/250mm/300mm/350mm/400mm/450mm Stroke Length for Option,
Here for sale is 200mm stroke,
Specification:
About the Solar Tracking Controller

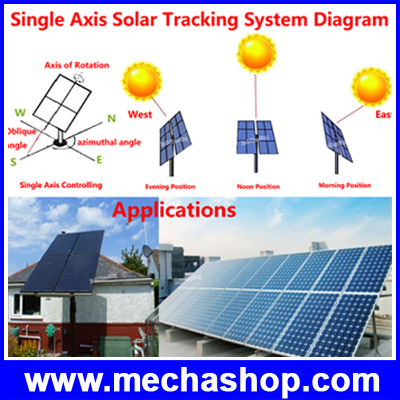

Here for sale is WST03-5 Single Axis Solar Tracker Controller, the main function is to control the single axis (oblique single axis)
system to track the sunlight. Items include the controller box, light sensor&2meters wire and IR (infrared) remote controller.
One of the advantage is that the light sensor is inside the waterproof shell which can extend the light sensor's lifespan. Another advantage is there is a sun-visor which can enlarge the detection angle range and thus increase the tracking accuracy.
Features:
- Tracking accuracy is high, average tracking accuracy is ≤1°(The actual accuracy is relevant with the system’s moving speed)
- The light-sensor is inside the waterproof shell, which is waterproof, dustproof and resistant to ageing
- The interval time of continuous tracking is adjustable
- The threshold value of the light-sensor is adjustable
- The threshold value of the wind speed sensor is adjustable
- With working status indicator light, can indicate multiple working status: East-West orientation working status, manual status
- wind speed action status, sunny status, cloudy status, execute to scheduled homing status in cloudy day, self-lock status at night
- Can execute to scheduled homing position in cloudy day or at night

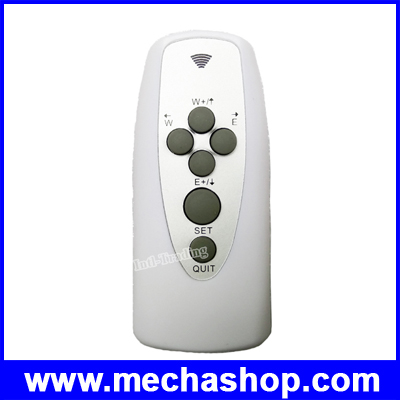

- With IR remote control to manually control the East-West orientation
- Users can add external limit switch as needed
- Users can add wind speed sensor as needed
- Can move to scheduled position when there is wind (Needs to add wind speed sensor)
- East-West orientation limiting (Needs to add limit switch)
- Wrong battery pole connection protection, with over-current protection fuse
- Low standby power, standby current is <10mA
Product Highlights:
- Easy-installation.
- Single axis tracker provides up to 35% more power production
- Engineered to hold up to 1000 Watts of solar panels
- Waterproof with IP65
- Small self –consumption.
Caution:
- Never approach a solar tracker while the Solar Tracker electronics are “on”.
- The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.
- Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.
Application:
Solar tracking system: Solar photovoltaic System, solar thermal system,etc.
Package Including:
- 1X 400mm 16″ Stroke 4mm/s Speed Linear Actuator.
- 1X Solar Tracking Controller+Light Sensor+IR Remote.
- 2X Silver Mounting Brackets for the linear actuator.
รับประกันสินค้า 3 เดือน
