อินเวอร์เตอร์ อินเวอร์เตอร์ไฮบริด 3KW/48V Solar Hybrid Inverter and charger 3000W PY-HF4830S60
>> เช็คสต๊อคสินค้า <<
Fetures:
- Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
- Two output modes: mains bypass and inverter output; uninterrupted power supply.
- Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
- Advanced MPPT technology with an efficiency of 99.9%.
- Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
- ON/OFF rocker switch for AC output control.
- Power saving mode available to reduce no-load loss.
- Intelligent variable speed fan to efficiently dissipate heat and extend system life.
- Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
- 360 ° all-round protection with a number of protection functions.
- Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

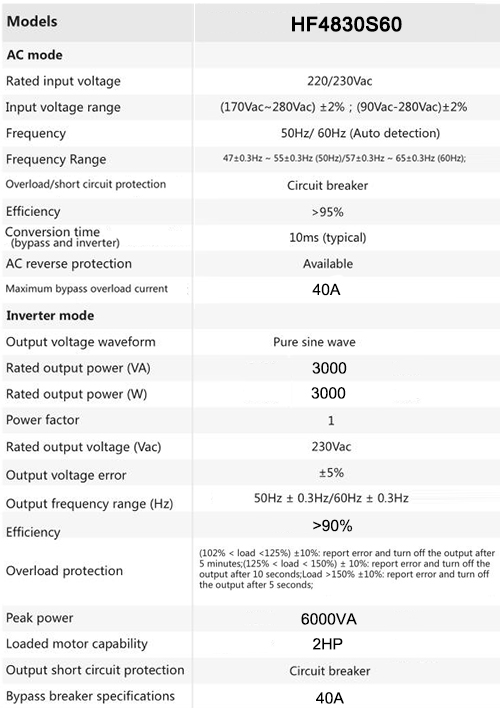

Specifications:
- Name: PY-HF4830S60
- Rated Input Voltage: 220/230Vac
- Input Voltage Range: (170Vac~280Vac) ±2/(90Vac-280Vac)±2
- Input Solar voltage (Max): 145V
- Frequency: 50Hz/ 60Hz (Auto detection)
- Efficiency: 95
- Maximum Bypass Overload Current: 40A
- Output Voltage Waveform: Pure Sine Wave
- Rated Output Power(VA): 3000VA
- Rated Output Power(W): 3000W
- Rated Output Voltage (Vac): 230Vac
- Peak Power: 6000VA
- Maximum Charge Current: AC 60A /DC 60A
- Communication: USB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
- Size (LWD): 430mm x 338mm x 126mm
รับประกันสินค้า 1 ปี
(ไม่รับประกันกรณีสินค้าแตก ไฟลัดวงจร ไฟช็อต ฟ้าผ่า)
