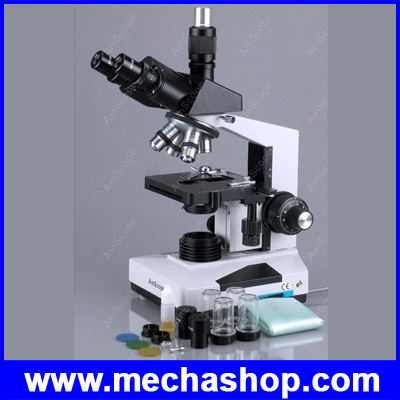

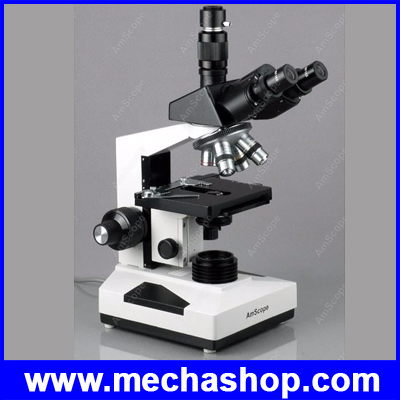

This digital microscopy system includes a T490B trinocular microscope and a 9MP USB2.0 color digital camera. It is an ideal laboratory instrument for clinics, Vets, Doctors, and professional students. The T490B features a unique “simul-focal” optical system with an adjustable trinocular port to enable well-focused clear images on your computer or video screen while simultaneously obtaining sharp, focused images through the eyepieces. Most trinocular microscopes allow you to view either through the trinocular port or the eyepieces only, forcing you to switch between the two. Since these trinocular ports are not “simul-focal” with the rest of the microscope optical system, you have to re-focus the microscope after each switch. The T490B, however, erases this step by providing simul-focal viewing. Especially handy for teaching demonstrations, clinical examinations and laboratory applications, the “simul-focal” feature allows your students, patients or colleagues to view clear images simultaneously while you work through the eyepieces. In addition, the T490B's industry standard 23mm photo port and C-Mount adapter allow you to attach most microscope digital cameras and video systems on the market. The T490B includes a 30-degree inclined 360-degree swiveling, compensation-free trinocular head, a 3D mechanical stage, and an intensity-variable halogen illumination system. Compatible with Windows XP/Vista/7/8, Mac OS X and Linux, the USB2.0 digital camera streams and records live video computers. The multi-functional user-friendly software included allows you to preview live images, record videos, capture still pictures, edit captures, or save them in BMP, TIFF, JPG, PICT, PTL and other formats very easily, as well as conduct length, angle, area, and other measurements. This microscopy system is perfect for teaching demonstrations, clinical examinations and laboratory applications.

Features:

• Simul-focal Optical System Allows Simultaneous Viewing Through the Photo Port and Eyepieces

• Adjustable Parfocal Trinocular Port

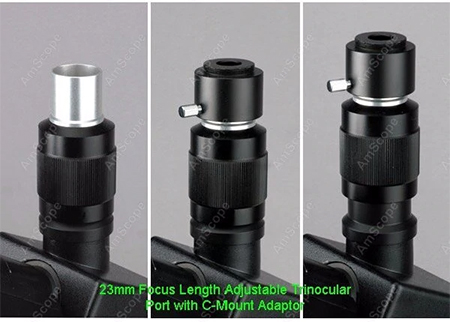

• Industry Standard 23mm Photo Port and C-mount Port

• High Quality 9MP USB2.0 Color Digital Camera

• Both Captures Microscope Images and Streams Live Video on Your Computer Screen

• Streams 9MP Live Videos

• Saves still images in BMP, TIFF, JPG, PICT, PTL and other formats

• Measures lengths, angles, areas and etc. across images

• Edits images on your computer in a manner similar to PhotoShop

• User-friendly software compatible with Windows XP/Vista/7/8 and Mac OS 10.6 & up

• Life-time free software upgrading

• Quick and easy USB2.0 connection

• 30-Degree Inclined, 360-Degree Swiveling Compensation Free Trinocular Head

• Photo/Video Capability with Adjustable 23mm Photo Mount for “Simul-Focal” Image System

• Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish

• Low-Position Coaxial Stage Movement Control Knobs

• Coaxial Coarse Fine Focusing with CA Knob Tension Control

• Fully Coated Optical System with High Resolution

• Eight Magnification Settings: 40X-80X-100X-800X-400X-800X-1000X-2000X

• Upward Stage Stopper to Protect Slides and Objectives

• Abbe Condenser with Iris Diaphragm Filters

• Rack and Pinion Adjustment for Condenser

• Built-in Halogen Illumination System with Variable Intensity

• Dual Focusing Control Knobs

• Full Optical Glass Elements

• Precise Ground Glass Lenses

• All Metal Mechanical Components.

• Adjustable Interpupillary Distance

• Adjustable Diopter on Ocular

• Solid Metal Frame Construction with Stain Resistant Enamel Finish

• CE and GS Approvals

Specifications:

• Nosepiece: quadruple

• Mechanical Tube Length: 6-5/16″ (160mm)

• Head: 360-degree swiveling compensation free trinocular head inclined at 30-degree

• Eyepieces: WF10X and WF20X

• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)

• Stage Dimensions: 5-1/2″x 5-1/2″ (140x140mm)

• Stage Traveling Range: 2-15/16″x 1-3/4″ (75x45mm)

• Focusing Range: 1-3/16″ (30mm)

• Division of Fine Focusing: 0.0000787″ (0.002mm)

• Abbe Condenser: NA=1.25 with rack and pinion focusing control

• Illumination: 6V/20W halogen bulb

• Power Supply: 110V (220V version available), CE & GS certified

• Accessories: 6V/20W spare halogen bulb, bottle of , blue, green yellow filters

• Microscope Dimensions: 12″ x 9″ x 16″

Packing List :

• 1 x Trinocular Compensation-Free Head with 23mm Adjustable Photo Port and C-Mount Adapter

• 1 x Microscope Body with Frame, Base and Halogen Illumination System

• 4 x High Quality DIN Objectives, 4X, 10X, 40X and 100X

• 2 x Pairs of Widefield Eyepieces, WF10X and WF20X

• 3 x Color Filters

• 1 x Dust Cover

• 1 x Power Cord

• 1 x 6V/20W Spare Halogen Bulb

• 1 x Spare Fuse

• User's Manual

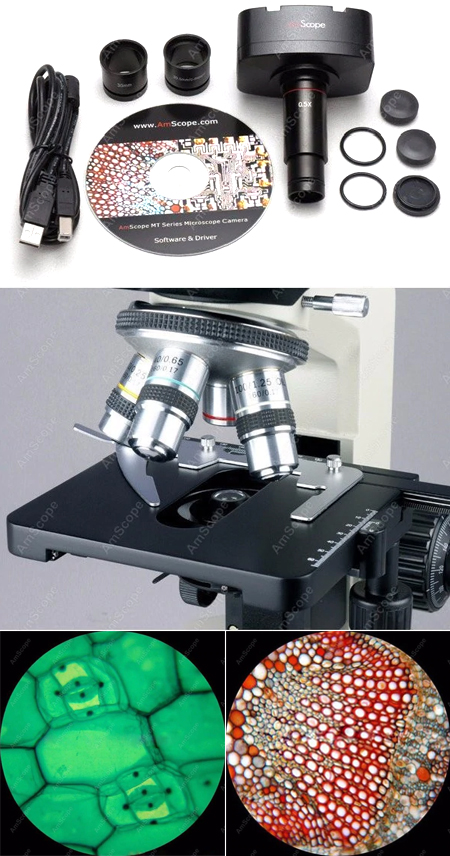

• 1 x 9MP USB2.0 Microscope Digital Camera

• 3 x Mounting Adapters

• 1 x USB Cable

• 1 x CD with Driver, Software and User's Instructions
