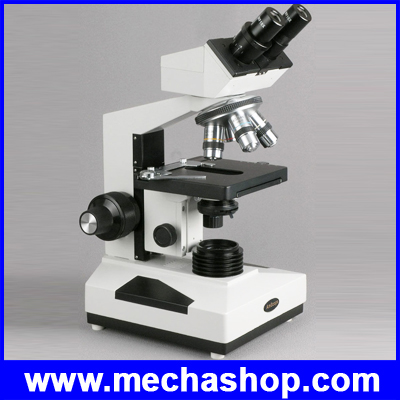

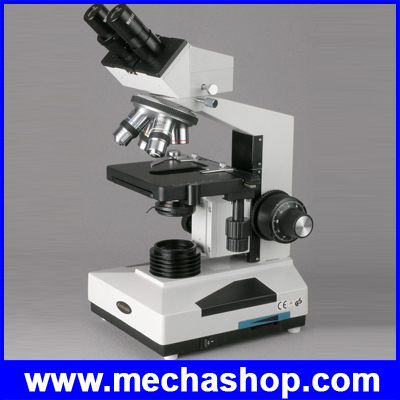

กล้องจุลทรรศน์พร้อม USB Camera ในตัว Digital Binocular Compound Microscope 40x-2000x with Built-in 3MP USB Camera from USA (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
Key Features:
- 40x-2000x professional sliding head binocular microscope
- Widefield optics offers eight magnification settings
- Abbe condenser with iris diaphragm filters
- Metal framework with coaxial coarse & fine focus
- 20W powerful halogen illumination
- Dual side focusing controls
- Adjustable Diopter on Ocular
- Compatible with Windows 2000/XP/Vista/7
Brand Name: AmScope Model No: U230B
- This is a professional compound microscope with 3.0M pixel built-in USB camera.
- It is compatible with Windows 2000/XP/Vista/7.
- It comes with an advanced application.
- It is perfect for scientific research, clinic and education use.
Features :
- Fully Coated Optical System with High Resolution Showing Sharp Image
- 45-degree Inclined 360-degree Swiveling Sliding Binocular Head

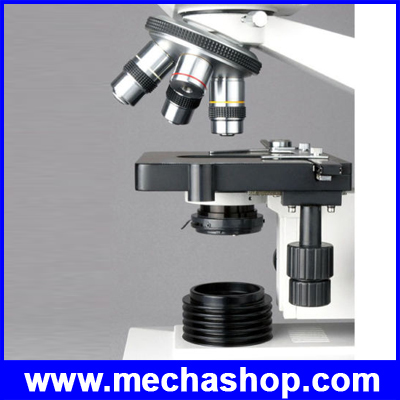

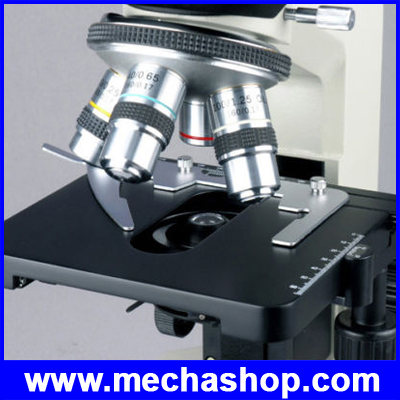

- Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
- Low Position Coaxial Stage Movement Control
- Coaxial Coarse Fine Focusing with CA Knob Tension Control
- Fully Coated Optical System with High Resolution
- High Quality Professional Grade Microscope with Crystal Clear Sharp Images
- Perfect for Clinics, Vets, Doctors and Medical School Students
- Eight Magnification Settings: 40X-80X-100X-200X-400X-800X-1000X-2000X
- Upward Stage Stopper to Protect Slides and Objectives
- Abbe Condenser with Iris Diaphragm Filters
- Rack and Pinion Control for Condenser
- Built-in Halogen Illumination System with Variable Intensity
- Dual Side Focusing Controls
- Four DIN Achromatic Objectives
- Two Sets of Eyepieces
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Rugged Metal Frame and Stand with Stain Resistant Enamel Finish
- Spare Bulb, Fuse and Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Factory Warranty
Specifications :
- Nosepiece: quadruple
- Mechanical Tube Length: 6-5/16″ (160mm)
- Head: binocular sliding head inclined at 45-degree
- Wide-Field Eyepieces: WF10X and WF20X
- Interpupillary Distance: 2-3/16″ – 3-0″ (55 – 75mm)

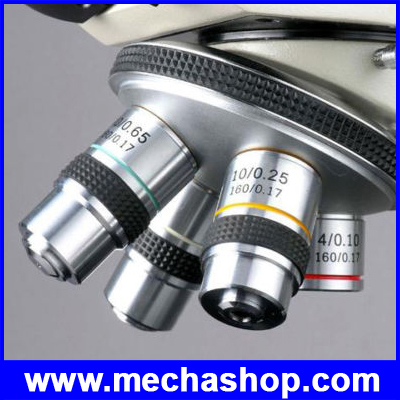

- Achromatic Objectives: 4X, 10X, 40X (spring) and 100X (spring, oil)
- Stage Dimensions: 5-1/2″x 5-1/2″ (140x140mm)
- Stage Traveling Range: 2-15/16″x 1-3/4″ (75x45mm)
- Focusing Range: 1-3/16″ (30mm)
- Division of Fine Focusing: 0.0000787″ (0.002mm)
- Abbe Condenser: NA=1.25 with rack and pinion focusing control
- Illumination: 6V/20W halogen bulb, CE certified
- Power Supply: 110V (220V version available), CE certified
- Accessories: 6V/20W halogen spare bulb, bottle of objective oil, and color filters
- Microscope Dimensions: 12″ x 9″ x 16″
Specifications for Software:
Main Function: Live previewing, image capturing, video recording, processing and measuring
Processing: Crop, cut, copy, paste, flip, rotate, zoom, free transform, net warp. Brightness/contrast, color balance, hue/saturation, invert, grayscale, shade correction, smooth, edge detection. Arithmetic (OVERLAY between two images or one to itself): Add, minus, multiply, divide, And, Or, Not, XOr, And Not, Or And, Max, Min, Sub, Feature And, Mask And.
Measurement: Point position, linear length, circular area and radius, rectangular area, angle degree.
Sign marking tools: Adding text, arrow, scale ruler. The color and the size of the signs are adjustable
Region of interest: Rectangle, ellipse and polygon region.
Calibration tool: Calibrates the system unit to get the actual read of the measurement.
Measurement Data: Save the measurement data into a file. Merge and save, Print out.
Packing List:
- One Sliding Binocular Microscope Head
- One Microscope Body with Frame, Base and Halogen Illumination System
- Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 20X Eyepieces
- Two Color Filters
- One 6V/15W Spare Halogen Bulb
- Immersion Oil
- User's Manual
หมายเหตุ สินค้า Pre Order : กรณีสินค้ามีการอัพเกรดเทคโนโลยีให้ทันสมัยขึ้น ซึ่งบางครั้งอาจเกิดขึ้นได้ โดยที่อาจมีการเพิ่มฟังก์ชั่นมากขึ้นแต่ยังคงฟังก์ชั่นพื้นฐานเดิมไว้ ลูกค้าโปรดยอมรับการเปลี่ยนแปลงที่เกิดขึ้น
รับประกันสินค้า 1 ปี
