กล้องจุลทรรศน์ 40X-2000X LED Lab Trinocular Compound Microscope w 3D Two-Layer Mechanical Stage from USA (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<

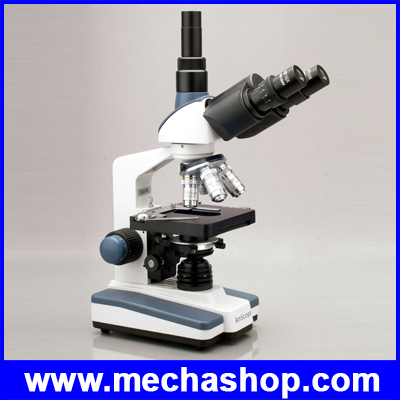

AmScope T120B 40X-2000X LED Lab Trinocular Compound Microscope w 3D Two-Layer Mechanical Stage
Key Features:
- Eight widefield magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X

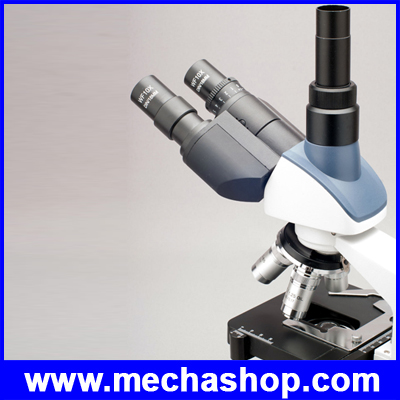

- Professional 30 degree inclined 360 degree swiveling Siedentopf trinocular head

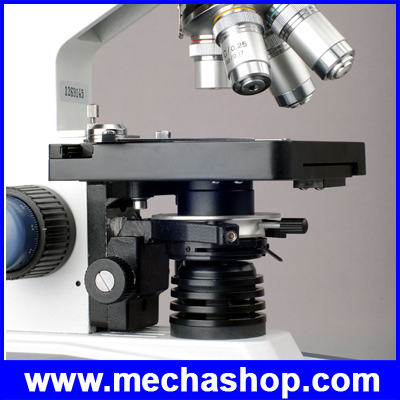

- Large 3-D double layer mechanical stage with coaxial coarse & fine focusing
- High quality Abbe condenser with iris diaphragm & filter
- Powerful single bulb LED illumination with dimmer
- 23mm Trinocular port for adding photo/video capability
Brand Name: AmScope Model No: T120B
Our new trinocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf trinocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. Its trinocular port 23mm allows to add photo/video capability. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. This microscope is made by the same technicians and on the same production line as optical instruments for Leica, Zeiss, Nikon and Olympus.
Features :
- 30 degree inclined 360 degree swiveling Siedentopf trinocular head
- High quality precise optical glass elements
- Easy to attach a microscope camera or digital imager
- Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X

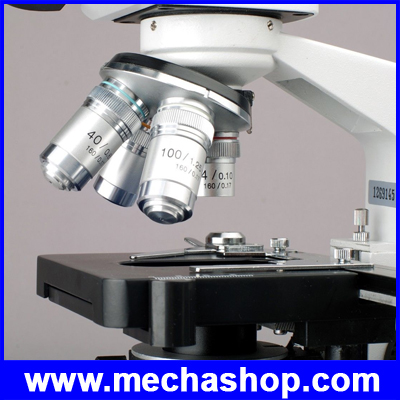

- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two pairs of widefield eyepieces: WF10X and WF20X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
Specifications :
- Eyepieces: widefield, WF10X and WF20X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling trinocular
- Interpupillary distance: 2-1/8″ – 3-1/8″ (53mm – 77mm)
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- – Size: 4-5/8″ x 5″ (118mm x 127mm)
- – Travel Range (X-Y): 2-13/16″ x 1-3/16″ (70mm x 30mm)
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimension: 11″ x 7″ x 13-3/4″ (280mm x 178mm x 350mm)
Packing List :
- One Siedentopf Trinocular Microscope Head
- One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- Four DIN Standard Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 20X Eyepieces
- One Blue Color Filter
- One Dust Cover
- Sample Immersion Oil
- User's Manual
หมายเหตุ สินค้า Pre Order : กรณีสินค้ามีการอัพเกรดเทคโนโลยีให้ทันสมัยขึ้น ซึ่งบางครั้งอาจเกิดขึ้นได้ โดยที่อาจมีการเพิ่มฟังก์ชั่นมากขึ้นแต่ยังคงฟังก์ชั่นพื้นฐานเดิมไว้ ลูกค้าโปรดยอมรับการเปลี่ยนแปลงที่เกิดขึ้น
รับประกันสินค้า 1 ปี
