รายละเอียดสินค้า

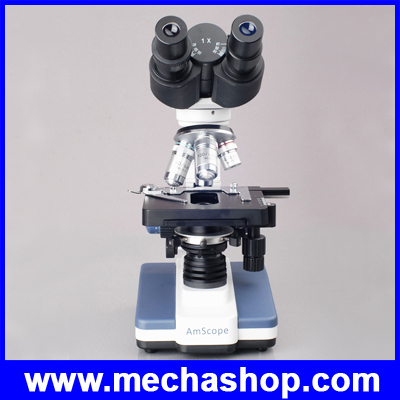

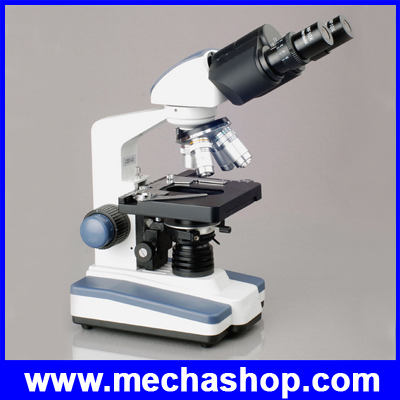

กล้องจุลทรรศน์ พร้อมอุปกรณ์ 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage + USB Camera (สินค้า Pre-Order)
>> แจ้งความต้องการสินค้า <<
.
หมายเหตุ สินค้า Pre Order ***กรณีสินค้ามีการอัพเกรดเทคโนโลยีให้ทันสมัยขึ้น ซึ่งบางครั้งอาจเกิดขึ้นได้ โดยที่อาจมีการเพิ่มฟังก์ชั่นมากขึ้นแต่ยังคงฟังก์ชั่นพื้นฐานเดิมไว้ ลูกค้าโปรดยอมรับการเปลี่ยนแปลงที่เกิดขึ้น
Features:
- 30 degree inclined 360 degree swiveling Siedentopf binocular head
- High quality precise optical glass elements
- Five magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

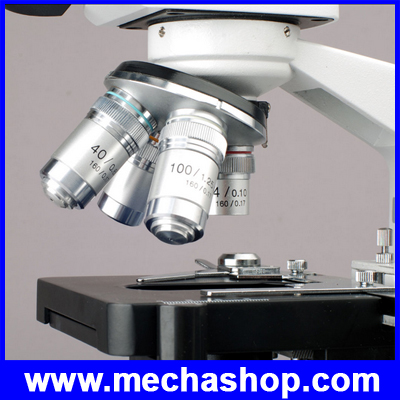

- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two pairs of widefield eyepieces: WF10X and WF25X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides of the microscope
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Manufactured under ISO 9001 Quality Control Standard
- From USA
Microscope Specifications:
- Brand Name: AmScope
- Model No: B120C-E
- Eyepieces: widefield, WF10X and WF25X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30 degree inclined 360 degree swiveling binocular
- Interpupillary distance: 2-1/8″ – 3-1/8″ (53mm – 77mm)
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- Size: 4-5/8″ x 5″ (118mm x 127mm)
- Travel Range (X-Y): 2-13/16″ x 1-3/16″ (70mm x 30mm)
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimension: 11″ x 7″ x 13-3/4″ (280mm x 178mm x 350mm0

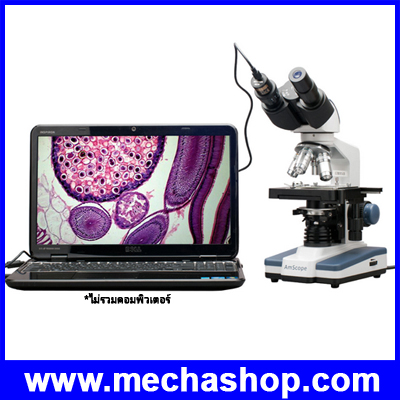

Camera Specifications:
- Resolution: 640×480 (approx. 350,000 pixels)
- Sensor Size: 1/4“ (3.58mm(H) x 2.69mm(V))
- Pixel Size: 5.6µm x 5.6µm
- G Sensitivity: 1.9v / lux-sec (550nm)
- Frame Rate: 30fps @640×480, 80fps @320×240
- Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
- PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
- Advanced software for Windows:
– offers stitching, EDF, video recording and measurement functions
– conducts measurements for lengths, angles, arcs, areas and etc.
– saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
– edit and process microscopy images in a manner similar to PhotoShop
– live video and still image capture can be set in different resolutions simultaneously
- Life-time free software upgrades
Packing List
- 1 Siedentopf Binocular Microscope Head
- 1 Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
- 4 DIN Standard Objectives, 4X, 10X, 40X and 100X
- 1 Pair of Widefield 10X Eyepieces
- 1 Pair of Widefield 25X Eyepieces
- 1 Blue Color Filter
- 1 Dust Cover
- Sample Immersion Oil
- User's Microscope Manual
- 1 USB2.0 Digital Camera 640×480 pixel
- 1 USB Cable
- 1 CD with Software, Driver and User's Instructions
รับประกันสินค้า 1 ปี
