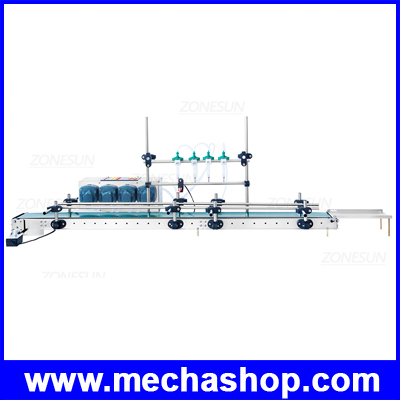

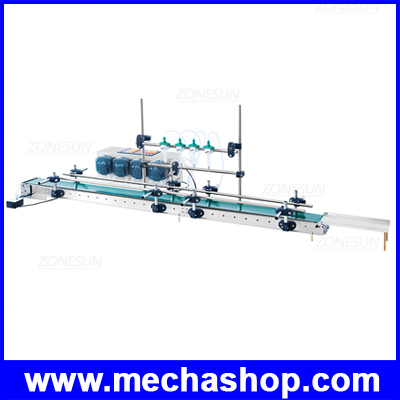

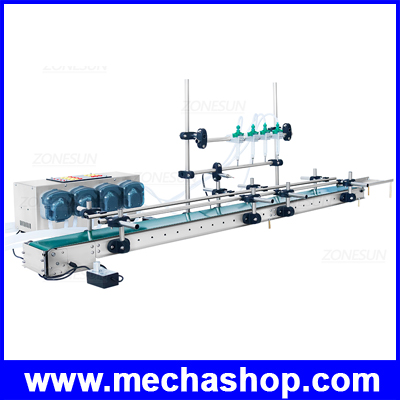

เครื่องบรรจุของเหลวอัตโนมัติ 4 หัวจ่าย ZS-DTPP100C4 10-100ml small automatic 4 nozzles peristaltic pump liquid Filling machine with conveyor 1200mm (Pre-Order)
>> แจ้งความต้องการสินค้า <<
This is a small production line for filling liquid. It adopts a modular design with 4 peristaltic pumps. It's suitable for small-volume filling. The height of the filling nozzles can be adjusted according to the bottles' height.
- Machine Model: ZS-DTPP100C4
- Voltage: 220V 50-60Hz
- Power: 75W*4
- Machine Pump: Peristaltic Pump
- Recommended Filling Range: 10-100ml
- Max Flow Rate: 700ml/min*4 (based on water)
- Filling Speed: About 50-60 bottles/min (50ml perfume)
- Minimum Bottleneck Diameter: ID 8mm
- Filling Nozzle Diameter: OD 3.3mm & OD 8.3mm
- Suitable Liquid Temperature: Max 100℃
- Size of Collecting Tray: 210mm*100mm (L*W)
- Liquid Inlet Pipe: 7mm (ID)*10mm (OD)
- Pipe in the pump: 4.8mm (ID)*8mm (OD)
- Conveyor Size: 1200mm (L)* 100mm (W)
- Max Load of the Conveyor: 6kg
- Package Size: 51*34*21cm (Machine), 67*17*20 (Conveyor)
- Package Weight 5.6kg (Machine), 5.2kg (Conveyor)
PRODUCT DETAILS
CONTROL PANEL
Digital display, easy to set the parameters and operate the machine.
PERISTALTIC PUMP
4 peristaltic pumps, modular design, easy to replace the hose.
The liquid only flows in the pipe, ensuring its cleanliness.
FILLING NOZZLE
For small-volume filling, 3.4mm & 6mm
ELECTRIC EYE
Intelligent and efficient, automatically detecting the bottles.
CONVEYOR BELT
With a speed regulator, max load: 6kg.
รับประกันสินค้า 1 ปี
