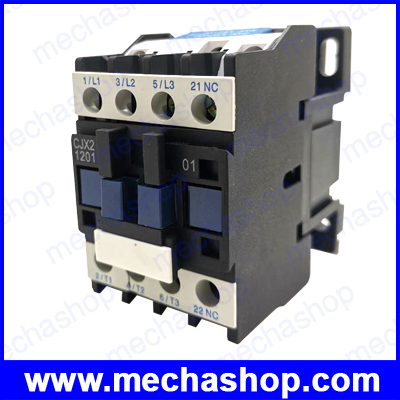

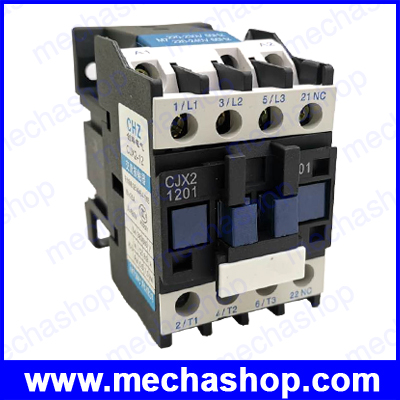

แมกเนติกคอนแทคเตอร์ CJX2-1201 12A 3P+NC Magnetic Ac Electric 3 Pole Contactor For Unit 220V Normally Closed Contactor
Features
- 660V AC rated insulation voltage, 3 pole 1NC, 220V AC rated coil voltage, 50/60Hz frequency.
- Widely use for long-distance connecting and breaking circuit , frequent start and control AC electric motors.
- The contact point contains approximately 85% silver thickened 1.5mm.
Specifications:
- Material: Plastic,Metal
- Model: CJX2-1201
- Main Color: Black
- Product Name: AC Contactor
- Rated Coil Voltage: AC 220V
- Rated working current: 12A
- Frequency: 50/60Hz
- Contact Type: 1NC
- Pole Number: 3 Pole
- Conventional Thermal Current(Ith): 25A
- Rated Insulation Voltage(Ui): AC 660V
- AC-3 Controled Power(Pe): 3/5.5KW
- AC-3 Rated Voltage(Ue): 220/380
- Total Size(Approx): 79 x 46 x 71mm(L*W*H)
- Rail Mounting: 35mm DIN Rail
- Package Content: 1 x AC Contactor
รับประกันสินค้า 1 เดือน
