รายละเอียดสินค้า

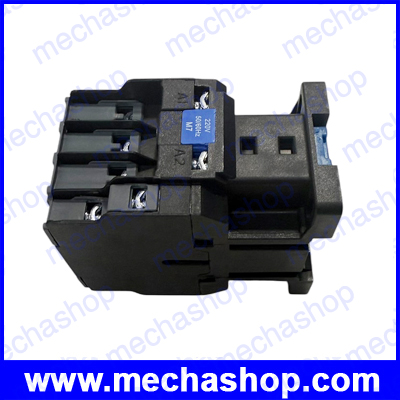

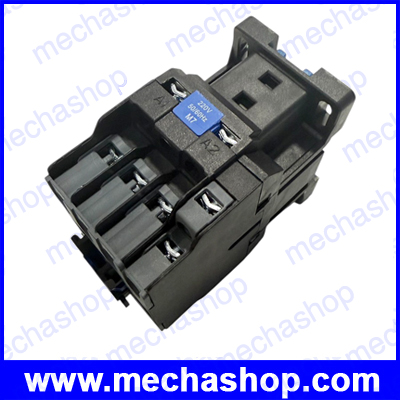

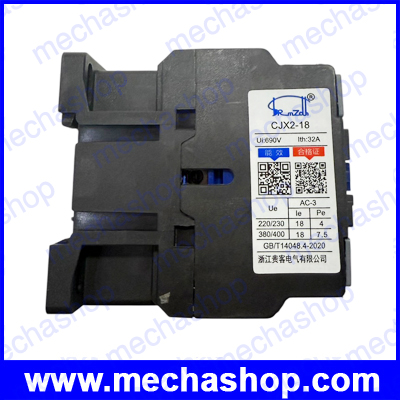

แมกเนติกคอนแทคเตอร์ CJX2-1810 LC1 AC Contactor 18A 3-Pole NO Coil Voltage 220V 50/60Hz Din Rail Mounted 3P+1NO
>> เช็คสต๊อคสินค้า <<
Features
- High quality: AC contactors are made of high quality materials for durability.
- Good performance: AC contactors have high sensitivity and higher load carrying capacity.
- Strong conductivity: Stable connection contact has strong electrical conductivity.
- Control load: This product is an industrial appliance that uses a coil to flow a current to create a magnetic field that closes
- the contacts to achieve a controlled load of the electrical installation.
- Applications: AC contactors are commonly used in power, distribution and power applications.
Specifications:
- Model: CJX2-1810
- Coil Power Supply: 220V
- Rated working current: 18A
- Coil Frequency: 50/60Hz
- Nnumber: 3
- Conventional Thermal Current(Ith): 25A
- Nominal Insulation Voltage(Ui): AC 660V
- AC-3 Coil Voltage: 24-380V
- Waterproof Grade: IP20
- Operation Frequency: 1200times/hour
- Size: approx. 45 x 80 x 75 mm
รับประกันสินค้า 1 เดือน
