โอโซนฟอกอากาศ โอโซนเจนเนอเรเตอร์ 80g 220V Ceramic Plate Ozone Generator For Industrial Air Sterilization Deodorization (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

.

รายละเอียดสินค้า

• Product: ECO-XH-80G

• Power Consumption: 400W

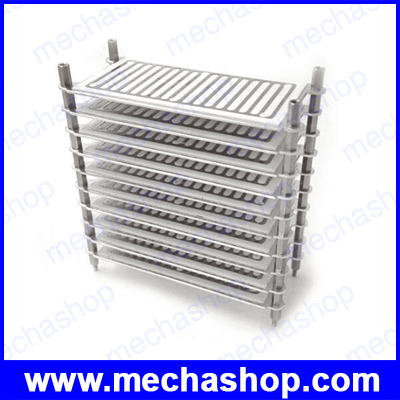

• Plate dimension: 148*52*2mm*10pcs

• Plate weight: 0.8kg

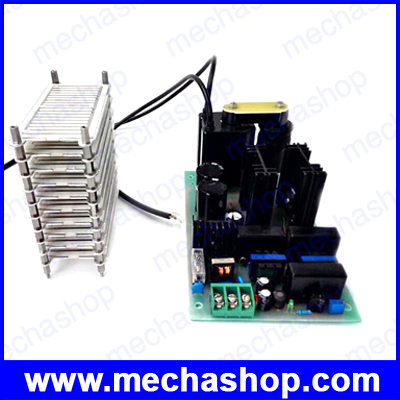

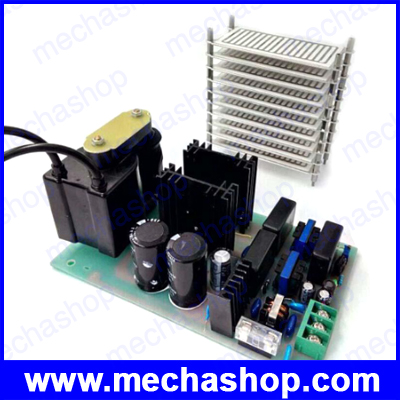

• Power pack dimension: 204*136*100MM

• Power pack weight: 1.5kg

• Air Flow: 500L/min

• Ozone Yield: 1-70g Adjustable

Installation:

Key points on installations:

1. Install both the power pack and plates in insulating boards, never on metal boards, and make them at least 5cm away from the metal casing to avoid short circuit and Electro Magnetic Interference (EMI).
2. According to the real condition, make the high voltage cables as short as possible, never merged or crossed together, make them at least 3cm away from each other to avoid EMI. if possible, Insert each high voltage cable seperately inside a proper silicone tube, to make it safer.
3. Install a fan at least 15050 (CFM 190/210) to cool down the ceramic plates, the cooler the better, to help generate steady amount of ozone. 4. If the environment is dusty, use a dust guard on the fan, to prevent more dust getting to the plates. Otherwise, it will impact the ozone ouput.

Feature:

• High Efficiency: take ultra thin dielectric material, discharge long the side, ozone yield high, low noise.
• High Ozone Concentration: High voltage, high frequency corona discharge, as ambient air as feeding sources, ozone concentration is higher.
• Small in body: effectively save volume, compared the same ozone yield product, its volume is 2/3 smaller than those of discharge from the gap.
• High Quality: Dielectric material is high temperature sintered from imported high purity aluminium oxide ceramic, discharge evenly, no aging, no scorification. The reverse side the ceramic plate is pasted with aluminum heat dissipation plate, no absorption of moisture, effectively heat dissipation, the working is as long as 8000hrs.

Function:

1. Sterilization: destroy variety of bacteria & viruses efficiently without secondary pollution.
2. Deodorization: eliminate mould, smoke etc.
3. Oxygen increasing: improve the oxygen level for air.
4. Health: air purification, expedite human metabolis.

Application Area:

• School, home, hospital, office, hotels, shopping malls, public places, central air conditioning pipeline disinfection, pharmaceutical factory, packaging, food processing plants, supermarkets, hotels, entertainment venues, conference rooms, locker rooms, livestock and poultry breeding, edible fungus cultivation, indoor plants grow, indoor vegetable…

Attention:

1. When using this ozone generator, better to use an electrical fan. and strictly forbid people working in the room with ozone in high concentration. The output high voltage is dangerous. you are strictly forbidden to touch it in any way when it is working.

2. Clean the ceramic plate with ethyl acohol every month, and use it when it fully dry. In this way, to gurantee normal ozone yield.



รับประกันสินค้า 3 เดือน

ข้อมูลเพิ่มเติม

น้ำหนัก	3.5 kg
