รายละเอียดสินค้า

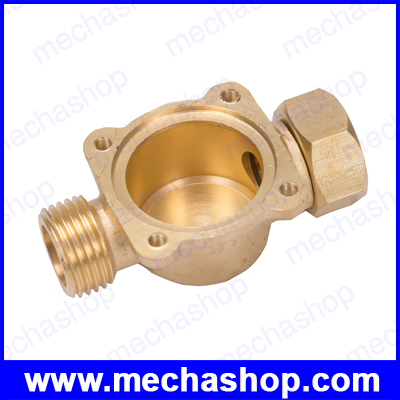

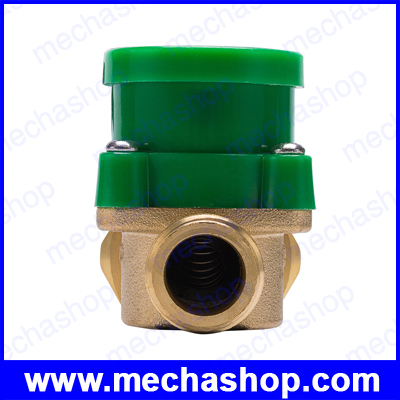

สวิทซ์ตรวจจับการไหล โฟลสวิทซ์ HT-120, 26mm-26mm water pump flow switch 1A booster pumps flow switch 220V AC
>> เช็คสต๊อคสินค้า <<
Product Description :
- HT-120 water pump flow switch
- AC 220V/50HZ. DC voltage is available if require.
- Flow Switch out screw: 26mm. (G3/4″)
- Flow switch inner screw: 26mm. (G3/4″)
- currect load: 1A
- Voltage: AC220V
- Maximum power load 200w
- hot water power load: 200w
- The starting capacity : 6-7L/min
After turning on the tap the flow wil push the plate to rotate.at a given positon the induction componet will be activated and the switch is on.the pump starts.the spring will force the plate to rotate back after turning off the tap.the induction component will be shut off and the pump stops.
The pipeline booster pump flow switch adopts the water flow type magnetic control device to carry out on-off control for the induction element.
To start and close the role of the pump. This product is widely used, mainly for the families of thousands of low water pressure area
Tap water pressure, especially for the low voltage ignition of the shower device is more important laser equipment, environmental protection
Equipment.
Technical characteristics:
- stable. In the design of the induction room, magnetic control room, electronic components room separation, to avoid the pipeline iron containing material is magnetic material ,Material adsorption, so as not to switch failure.
- resistant to high temperature. Using high temperature resistant material production, the product can be used in cold and hot water conditions.
- low water pressure start. The reset spring adopts the high quality stainless steel material, and the function of the water pump is reached.
- security: the use of electronic components as a control device, so that the use of products in the process of no spark, all closed.
Working principle:
- The water flow in the pipeline is opened, and the flow direction of the water flow impulse induction door is rotated in the direction of the rotating shaft to the water flow direction.
- Someone with axle loading, magnetron turning, positioning to west, triggering the sensing element, the switch on household conduit booster
- When the water pump is started with water equipment closed off, induction door in burning under the action of the reset spring, drive shaft and magnetron
- The system installed together to drive rotation, position and failure, induction switch, household Barbara road booster pump to stop running.
Technical index:
- Using medium tap water and physical and chemical can be similar to similar liquid.
- Medium pressure:0~6Mpa
- Medium temperature 100°C
Wiring Diagram
รับประกันสินค้า 1 เดือน
