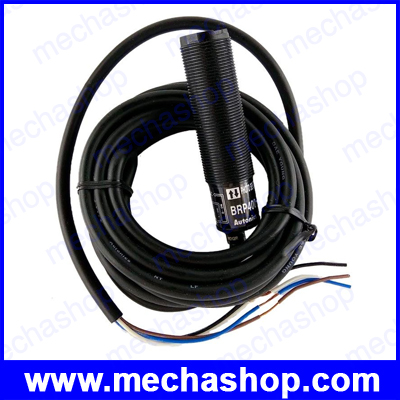

โฟโต้เซนเซอร์ โฟโต้อิเล็กทริคสวิทซ์ BRP400-DDT NPN Autonics Photoelectric Switch Sensor,12-24VDC,ระยะตรวจจับ 400mm ประกัน 1 ปี

รหัส PTE028
ราคา 1,150 บาท

PTE028

มีสินค้าอยู่ 3

รหัสสินค้า: PTE028 หมวดหมู่: โฟโต้อิเล็กทริคเซนเซอร์ ป้ายกำกับ: Autonics, Autonics BRP400-DDT, BRP400-DDT, Photoelectric Switch Sensor, PTE028, โฟโต้อิเล็กทริคสวิทซ์, โฟโต้อิเล็กทริคเซนเซอร์, โฟโต้เซนเซอร์

รายละเอียด
ข้อมูลเพิ่มเติม
บทวิจารณ์ (0)

รายละเอียดสินค้า

โฟโต้เซนเซอร์ โฟโต้อิเล็กทริคสวิทซ์ BRP400-DDT NPN Autonics Photoelectric Switch Sensor,12-24VDC,ระยะตรวจจับ 400mm ประกัน 1 ปี

>> เช็คสต๊อคสินค้า <<

BEN Series is built-in amplifier type in a compact size. This type has an indicator to allow users to identify operation status of sensors from a long distance.

Features

Small and power supply built-in type.
Easy installation with LED indicators on product.
Able to set the operation mode by switch. (Light ON/Dark ON)
Status and output LED indication
Built-in IC photo diode for ambient light and electrical noise.

Specifications:

Model: BEN300-DFR
Sensing type: Diffuse reflectiv
Sensing distance: 300mm*2
Sensing target: Translucent, Opaque materials
Hysteresis: Max. 20% at ratedsetting distance
Response time: Max. 20ms
Response time: 24-240VAC ±10% 50/60Hz, 24-240VDC ±10%(Ripple P-P : Max. 10%)
Power consumption: Max. 4VA
Light source: Infrared LED(940nm)
Sensitivity adjustment: Adjustment VR
Operation mode: Selectable Light ON or Dark ON by VR
Control output: Relay contact output
- Relay contact capacity: 30VDC 3A of resistive load, 250VAC 3A resistive load
- Relay contact composition: 1c
Relay lifetime: Mechanically: Min. 50,000,000 operation, Electrically: Min. 100,000 operation
Light receiving element: Photo IC
Indicator:
- Operation indicator : red
- Stability indicator : green
- (The red lamp on Emitter of transmitted beam type is for power indication)
Insulation resistance: Min. 20MΩ(at 500VDC megger)
Insulation type: Double or strong insulation (Mark : Dielectric voltage between the measured input and the power: 1kV)
Noise resistance: ±1,000V the square wave noise(pulse width : 1μs) by the noise simulator
Vibration
- Mechanical: 1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
- Malfunction: 1.5mm amplitude or 300m/s² at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 10 minutes
Shock
- Mechanical: 500m/s2(approx. 50G) in each of X, Y, Z directions for 3 times
- Malfunction: 100m/s2(approx. 10G) in each of X, Y, Z directions for 3 times
Environment
- Ambient illumination: Sunlight : Max. 11,000lx, Incandescent lamp : Max. 3,000lx(Receiver illumination)
- Ambient temperature: -20 to 65°C, storage : -25 to 70°C
- Ambient humidity: 35 to 85%RH, storage : 35 to 85%RH
Protection: IP50(IEC standard)
Protection: IP50(IEC standard)
Material:
- Case, Case cover: Heat resistant ABS
- Sensing part: PC(with polarizing filter: PMMA)
Cable: ø5, 5-wire, Length: 2m(Emitter of through-beam type: ø5, 2-wire, Length: 2m) (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator out diameter: ø1.25)
Accessory:
- Individual: Reflector(MS-2)
- Common: VR adjustment driver, Mounting bracket, Bolts/nuts

*1: The sensing distance is specified with using the MS-2 reflector and same as the MS-4 reflector. Sensing distance is setting range of the reflector. The sensor can detect under 0.1m.
*2: It is for Non-glossy white paper(100×100mm).
*The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
