รายละเอียดสินค้า

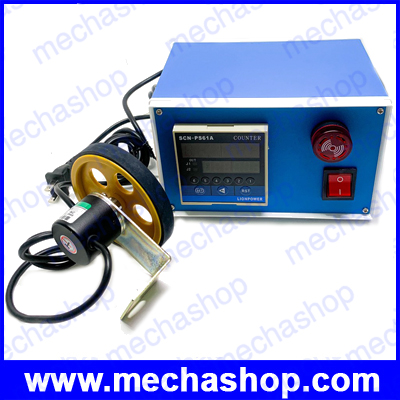

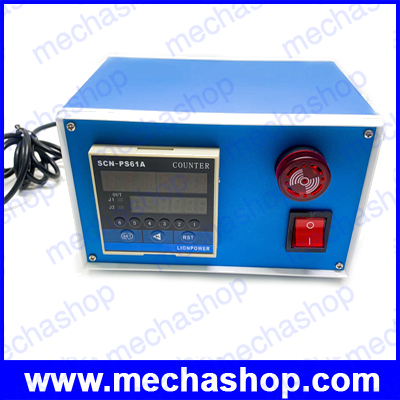

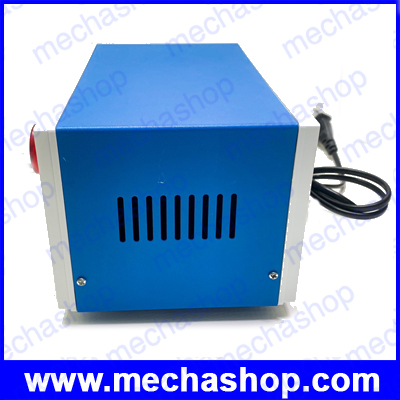

เครื่องทดสอบวัดระยะทางด้วยเอ็นโค้ดเดอร์ Electronic Encoder Digital Length Counter Meter Wheel Roll Testing Equipment
>> แจ้งความต้องการสินค้า <<

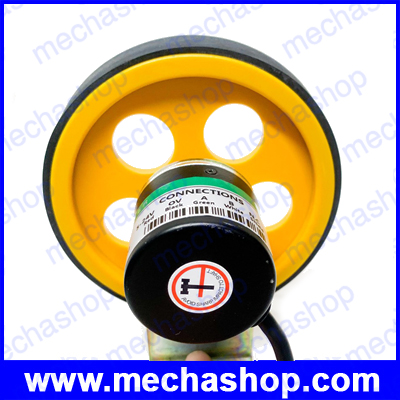

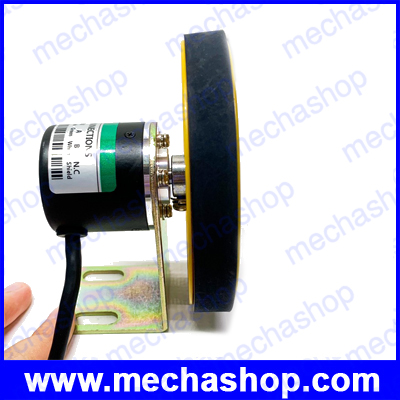

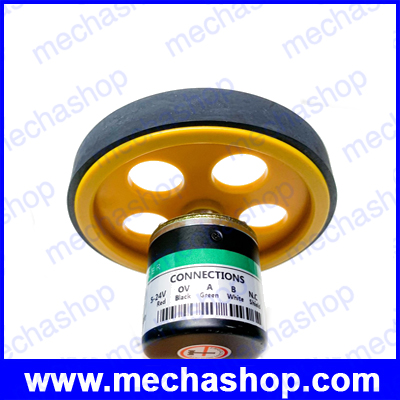

เอ็นโค้ดเดอร์ อุปกรณ์ที่ใช้ในการวัดระยะทางการเคลื่อนที่ และตำแหน่งการเคลื่อนที่
Electronic Digital Meter Electronic Encoder Digital Length Counter Meter Wheel Roll Length Measuring Meter Testing Equipment
ข้อมูลเอ็นโค้ดเดอร์:
For cloth inspecting machine, rolling machine, forming machine and cable machinery need to measure the length of the equipment is mainly used in textile, papermaking and other cable, wire, wire, tube and strip production process automatic measure and control meter, ring. The sensor uses reversible photoelectric sensor, overcomes the defects of low precision, low life mechanical measuring device caused by mechanical wear or slippery, is much higher than the accuracy of the mechanical counter, to achieve positive and negative 0.2%, and stable performance, strong anti-interference ability, simple operation and intuitive display. This product is designed for high performance and direction discrimination circuit with photoelectric encoder, which can realize the two directions of the length measurement, which can also reduce the superposition of meters, reversible meter!

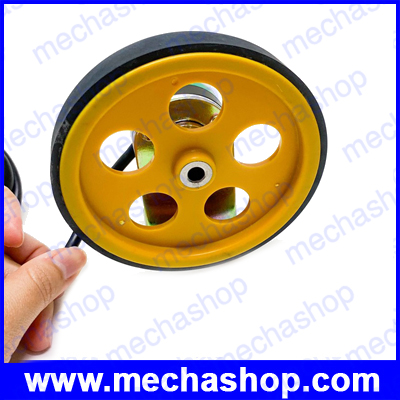

By changing the setting coefficient, the measurement results can be arbitrarily trimmed, so that the measured value is consistent with the actual value. It does not require the manufacture of a precise encoder sensor wheel or a user's sampling wheel, which can be almost any diameter. The installation is convenient, and the error caused by the installation is reduced. Can be applied to any model, any occasion of the meter.
Structural characteristics and main technical specifications

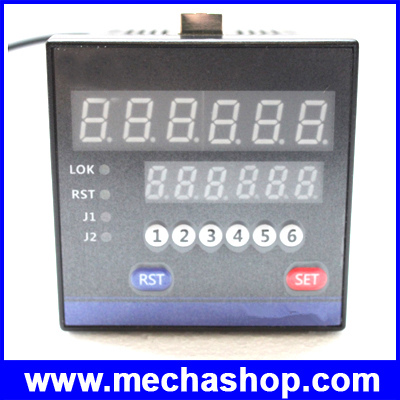

- the length of length measurement and control range: 00000.099999.9m, 0000.009999.99m, 000000999999m Display unit mm, cm, DM, meters, code switch settings!
- reversible bidirectional meter
- ratio coefficient: 0.00001 ~ 99.9999 adjustable
- exterior dimension: 72 * 72 * 85mm
- according to the size of the opening hole: 68 * 68mm
- error adjustment function
รับประกันสินค้า 3 เดือน
