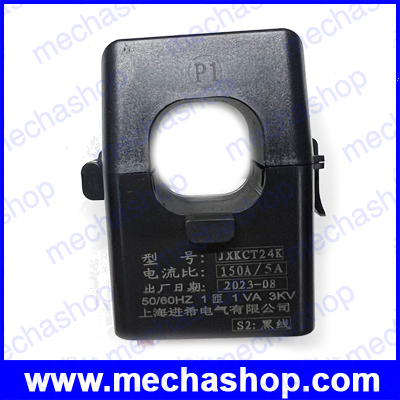

ซีทีเซนเซอร์วัดกระแสไฟฟ้า ขนาด 150A  CT Meters Clamp Sensors AC Current Transformer KCT24 150/5 Diameter 24mm

>> เช็คสต๊อคสินค้า <<

Description:

• This is a mini split base current transformer;Using snap joint structure, it can be fixed to the cable directly through nylon ties.Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, safety and reliability.
• Built-in input coil; small and light, easy to install.
• The diameter of inner hole is 24mm, the accuracy is ≤0.5 grade,

Specification:

• Item Name: Current Transformer
• Model: KCT24
• Primary Current: 150A
• Secondary Current: 5A
• Rated Ratio: 150A/5A
• Voltage:  600V 50/60Hz
• Rated Voltage: 3KV
• Rated Load: 1VA
• Accuracy Class: 0.5
• Environment temperature: -40~+85
• Relative humidity: ≤ 80%(40)
• Total Size: 65 x 52 x 34mm.
• Case Material: Plastic
• Color: Black

Package Content

• 1 x Current Transformer
