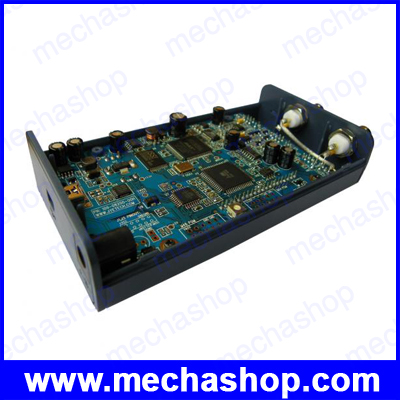

ดิจิตอล ออสซิลโลสโคป 10MHz Pocket/Portable Oscilloscope & Probe 2 CH
ข้อมูลของสินค้า:
- DSO002 is specified as 10MHz analog bandwidth but its actual -3db bandwidth is closed to 15MHz by real measurement and design.
- Up to 50Msps real-time sampling rate and 10mV/Div sensitivity enable the unit to carry out plenty of daily measurements for a regular electronic engineer or DIYer. Thanks to ample tactile controls and rotary encoder operations of DSO002 are straightforward and easy–there is no annoying menu navigation which is usually found with other portable oscilloscopes.
- Important features include 1024-point FFT, USB connection, capture save/recall, adjustable memory size, and rugged enclosure.
- The firmware is field upgradable through a simple USB connection.

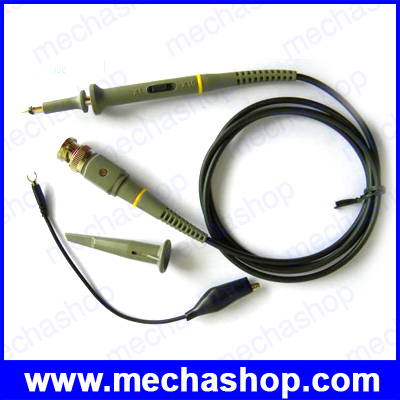

Not only is this scope the most affordable among oscilloscopes of similar performance but the BNC 10X probe and universal power adapter are also included!
- Item includes 1 Year manufacturer warranty for piece of mind. As always we are glad to help with any questions whether before or after purchase!
Features:
- Vertical
- Number of Channels: One
- Analog Bandwidth: 0 – 10MHz
- Sensitivity: 10mV/Div — 5V/Div
- Resolution: 8-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpp (for 1X probe)
- Coupling: DC, AC, GND
- Horizontal
- Max Real-time Sampling Rate: 50MSps
- Timebase: 0.2us/Div – 10s/Div
- Record Length: 2000 – 16000 points user selectable
- Zoom-in: Up to 10X in HOLD mode
- Run/Hold Modes: one button switchable
Trigger
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Sources: Internal/external
- Trigger Position: Adjustable
- Trig Point Indicator: Yes
Other Features
- Save/Recall up to 4 captures
- Screen image hardcopy
- USB connection for data transfer and firmware upgrade
- FFT with selectable length of 256, 512, or 1024 points and sampling rate from 1KSps to 50MSps
- Rotary encoder for quick parameter setting
- Display
- 2-inch 128 X 64 black-and-white dot-matrix LCD
- Backlight ON/OFF control
- Contrast adjustable
- Power Supply
- 9V AC/DC power adapter
- Supply voltage range: 8 – 12V
- Supply Current: 300mA (LCD backlight ON, typical)
- Reverse polarity and over-voltage protected
- Physical
- Dimension: 140mm X 70mm X 30mm
- Weight: 150 gram (not including probe and power adapter)
รับประกันสินค้า 6 เดือน
